Nova Combination Complete Shower Bathroom Suite

The sleek complete Nova Luxury Vanity Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item compliments the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination vanity set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Bath Screen

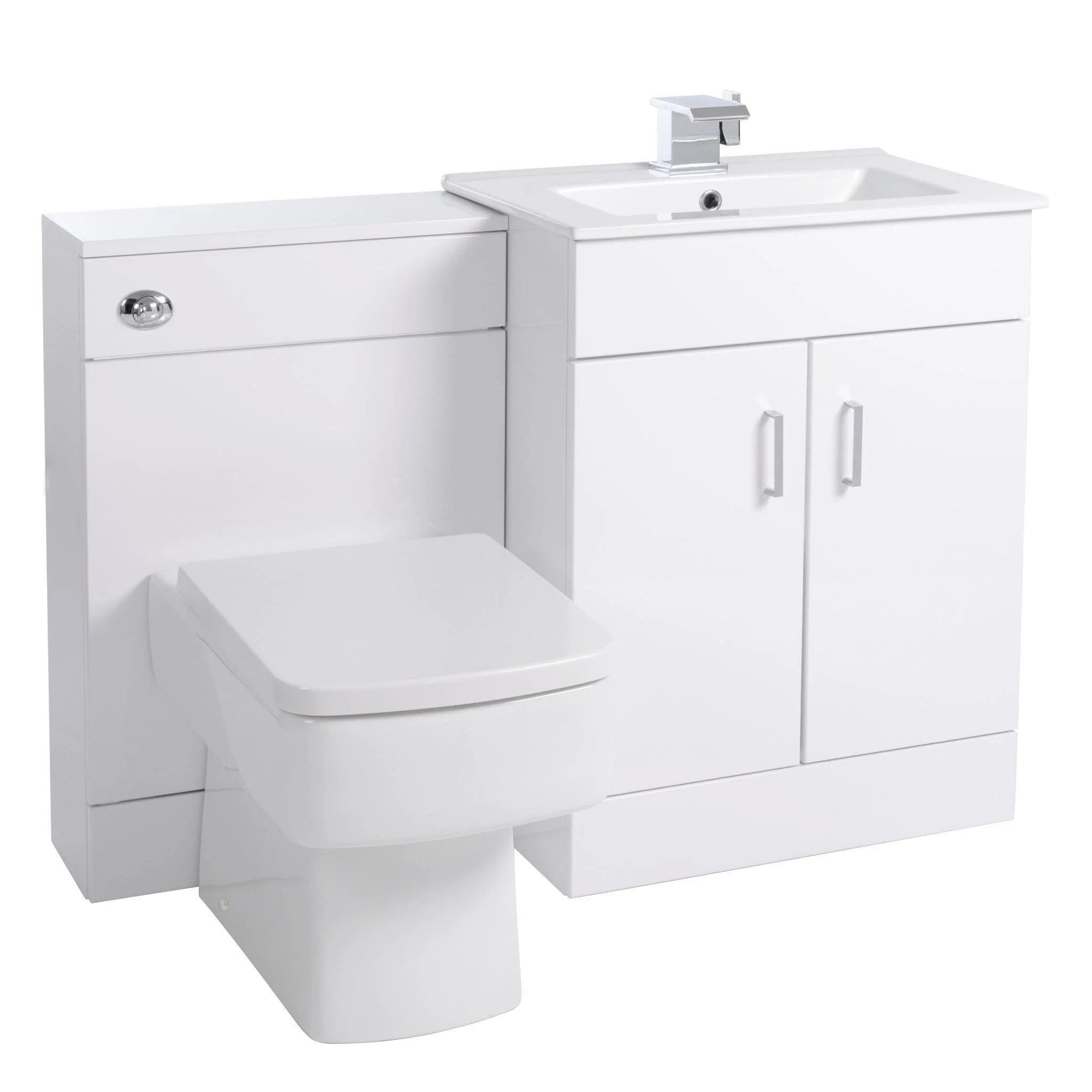

500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet with Seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Technical Specification

Bath

• Height: 550mm
• Length : 1700mm
• Width : 700mm
• Depth : 420mm
• Thickness 5mm
• Weight : 19kg
• Made in the UK from 100% sanitary grade cast acrylic
• Bath Type: Single Ended
• Colour : White
• Total Water Capacity (L): 200
• Base and underneath rim are reinforced for excellent rigidity
• Tap Holes: Can be drilled
• Supplied with adjustable legs and fitting pack

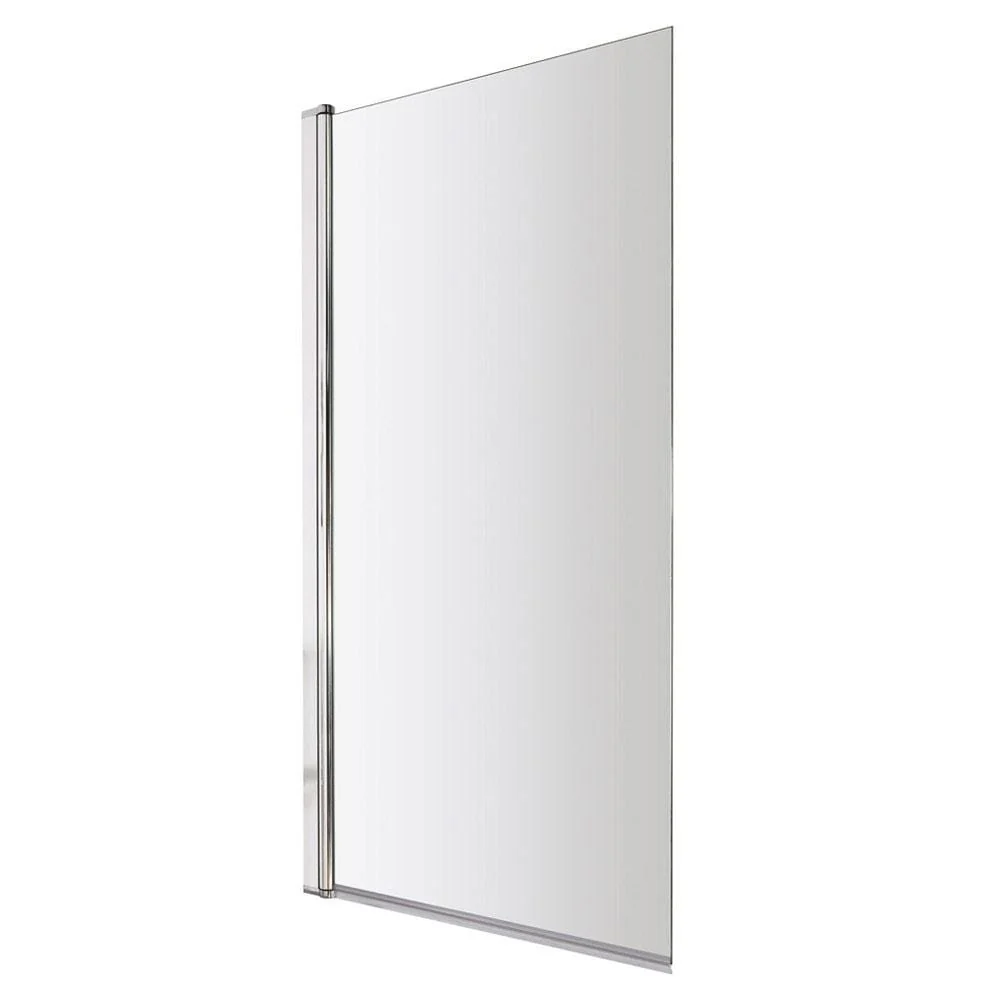

Screen

• Height : 1400mm
• Width : 790mm
• Glass Thickness : 6mm
• Bath Screen Design : Straight
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

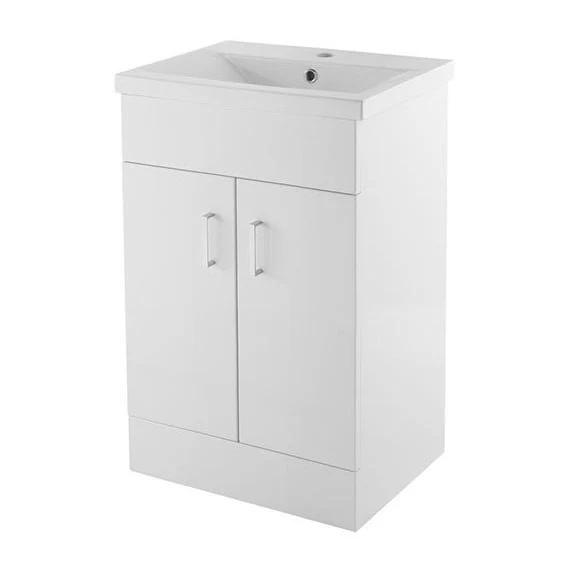

Basin Unit:

• Height (Unit + Basin) : 840mm
• Width : 510mm
• Projection : 400mm
• Furniture Type: Vanity Unit
• Style: Floor Standing
• Finish: Gloss White
• Materials Specification: MDF cabinet
• Available Storage: 1 Internal Shelf
• Features: Soft closing doors
• Weight : 31.04kg
• 2 chrome handle
• Some assembly required
• Complete with 1 Tap Hole Luxury Vitreous China Basin
• Manufacturers 5 year guarantee

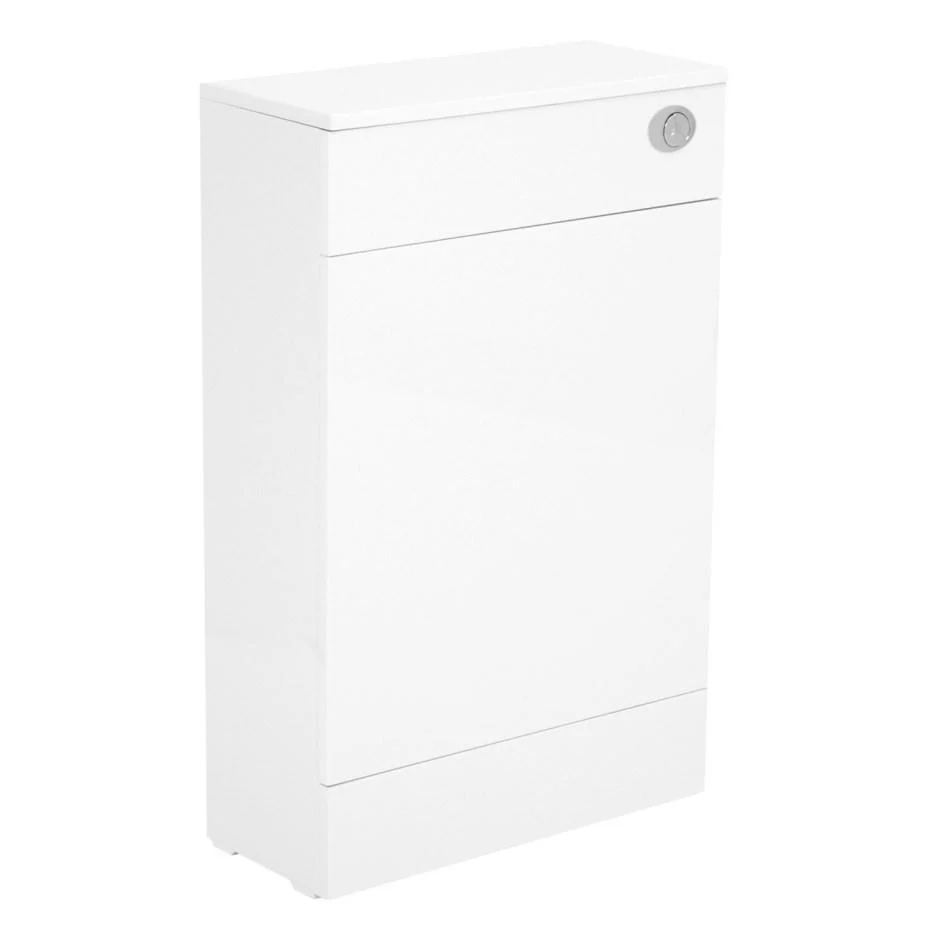

WC Unit:

• Depth: 800mm
• Width: 500mm
• Height: 200mm
• 18mm MDF Construction

• Finish: Gloss White

Concealed Cistern

• Flush: Chrome Finish Push Button
• Features: Suitable for Back to Wall Toilets

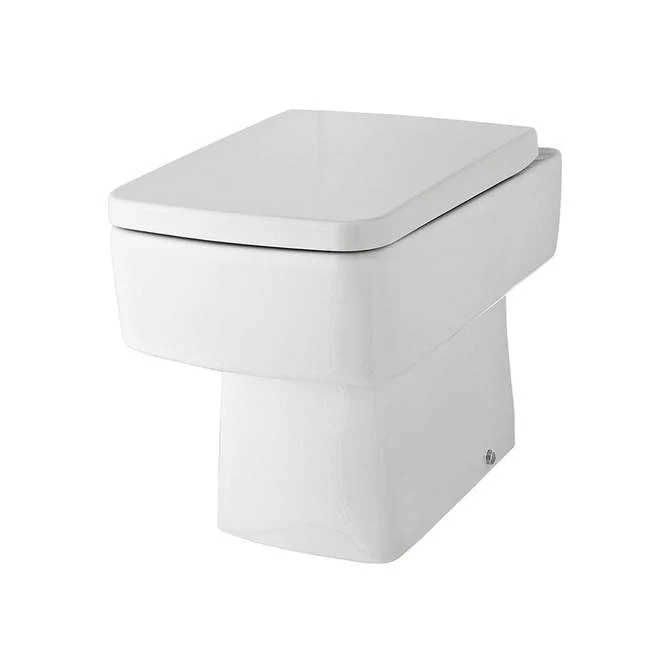

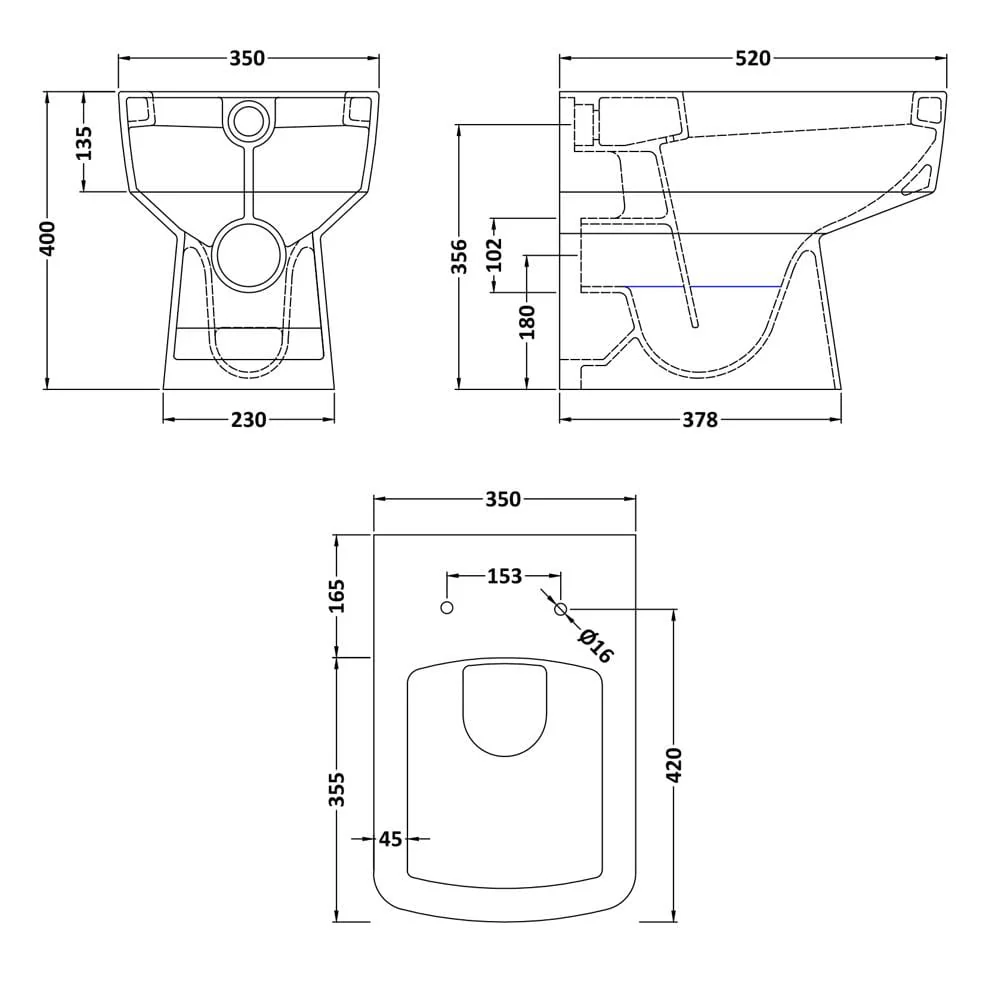

Toilet

• Height : 400mm
• Width : 350mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Seat Fixing Centres : 153mm
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Weight : 28.1kg
• Includes : Top Fixing Soft Close Seat

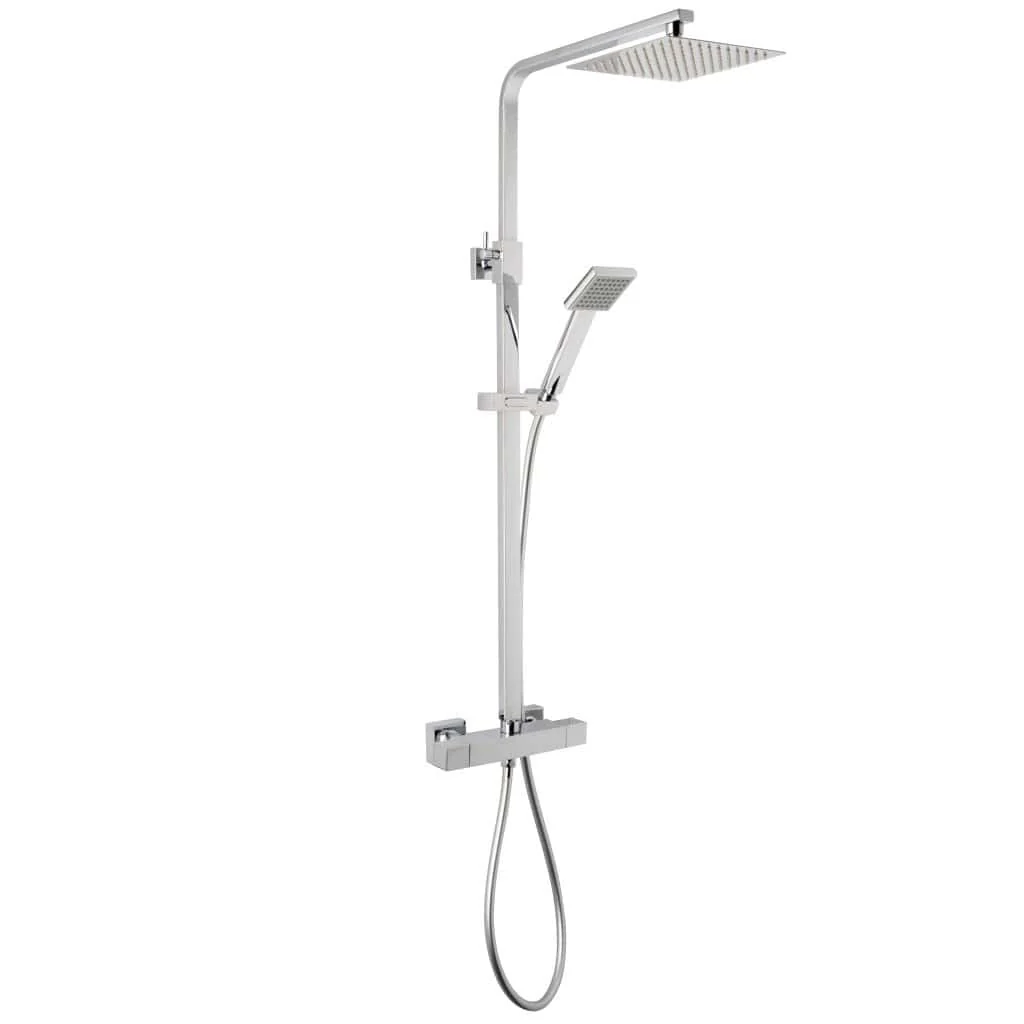

Shower

• Total Height : 690-1045mm
• Total Width : 263mm
• Total Projection : 344mm
• Material Specification : Brass
• Finish : Chrome
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Length of Shower Head Arm : 344mm
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.1 and 5.0 Bar
• Easy installation
• Incorporating diverter to control flow between shower head & handset

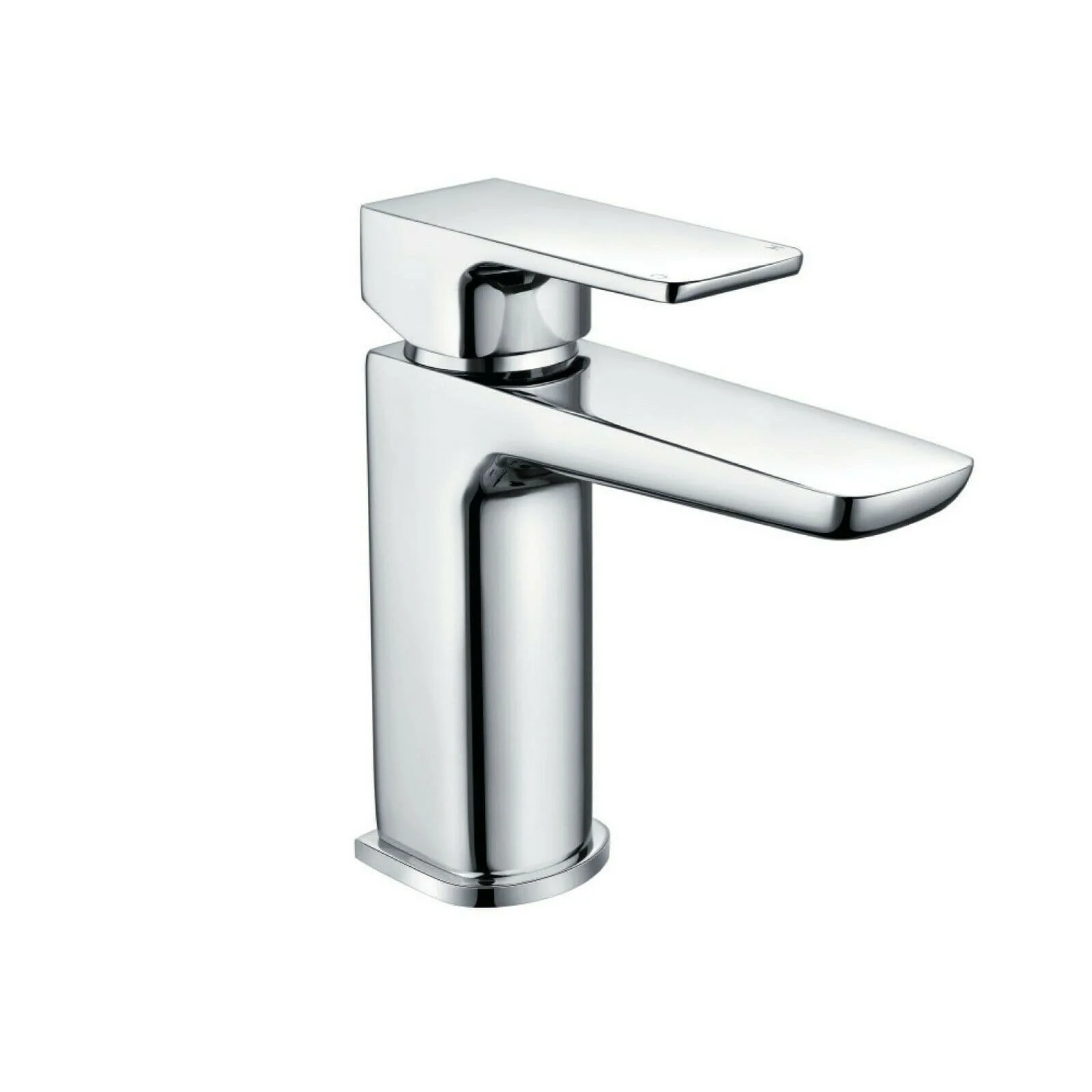

Basin Tap

• Height : 115mm
• Projection : 78mm
• Material Specification : Brass
• Finish : Chrome
• Operation : Single Lever
• Mounting : Deck Mounted
• Minimum Pressure : 0.5 Bar (8.9 Litres per min)
• Maximum Pressure : 3.0 Bar (21.9 Litres per min)
• Suitable for : Combination Boilers, Pressurised Systems, Pumped Systems & Gravity Fed Systems
• Includes : Push Button Basin Waste and Flexi Tails

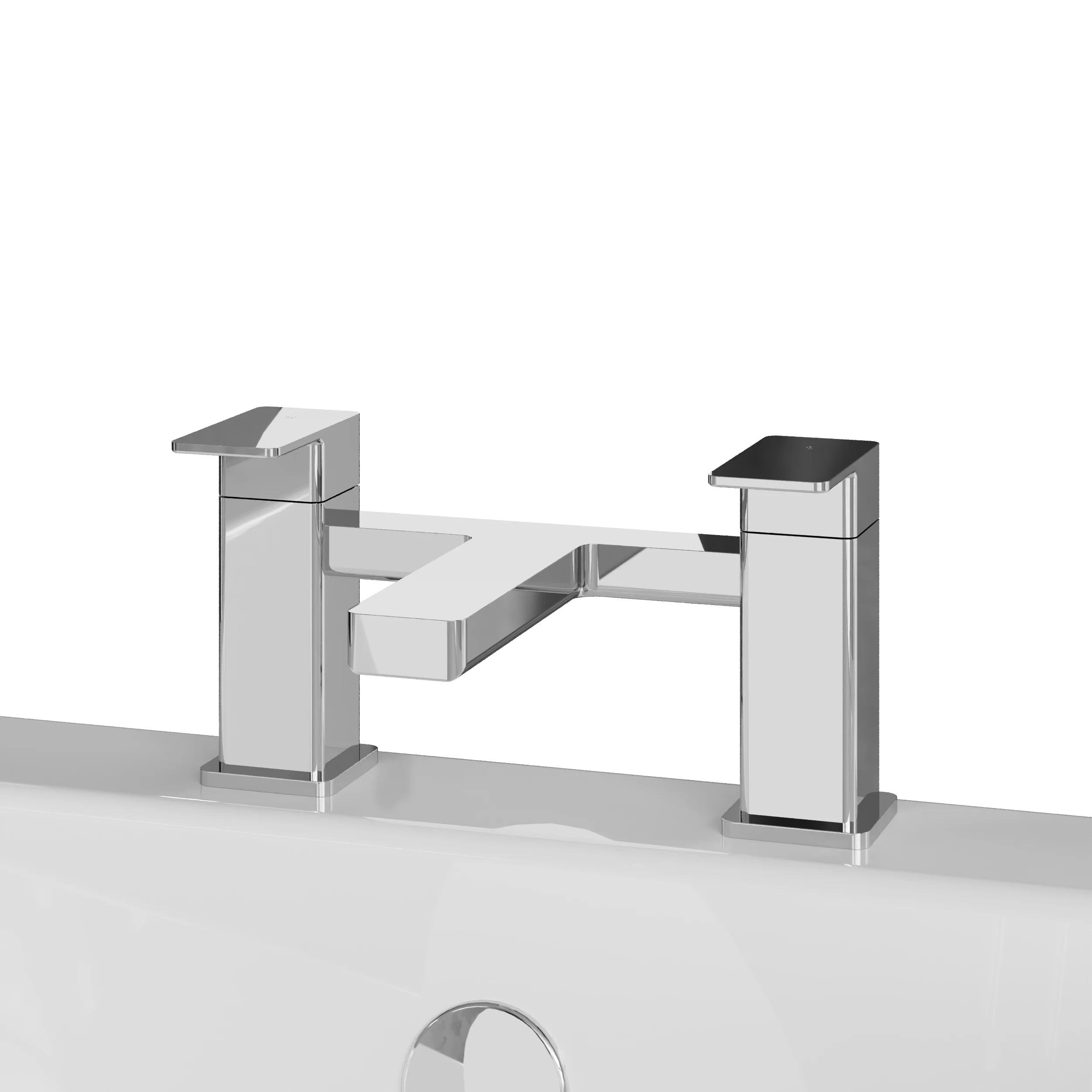

Bath Tap

• Height : 145mm
• Tap Spout Height : 84.5mm
• Width : 210mm
• Projection : 140mm
• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Dual Lever
• Weight : 2.14kg
• Tap Holes : 2
• Pipe Centres : 180mm
• Mounting : Deck Mounted
• Style : Modern
• Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems & Gravity Fed Systems
• Minimum Pressure : Subject to a minimum of 1.0 Bar

Waste

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
