Mantello Matt Black Complete Vanity Shower Bathroom Suite

The sleek complete Mantello Matt Black Vanity Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish matt black taps, shower and bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Bath Screen
500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath pop up waste

Technical Specification

Vanity Unit

• Vanity Unit : W500 x H865 x D383mm

• Quality Vitreous China Basin
• Single Tap Hole for Mono Basin Mixer
• 18mm Carcase Unit supplied fully assembled
• Soft Close Doors with 2 elegant handles
• Combination units can be fixed either left or right handed
• 5 year manufacturers guarantee

Bath

• Height: 550mm
• Length : 1700mm
• Width : 700mm
• Depth : 420mm
• Thickness 5mm
• Weight : 19kg
• Made in the UK from 100% sanitary grade cast acrylic
• Bath Type: Single Ended
• Colour : White
• Total Water Capacity (L): 200
• Base and underneath rim are reinforced for excellent rigidity
• Tap Holes: Can be drilled
• Supplied with adjustable legs and fitting pack
• Excludes bath panel

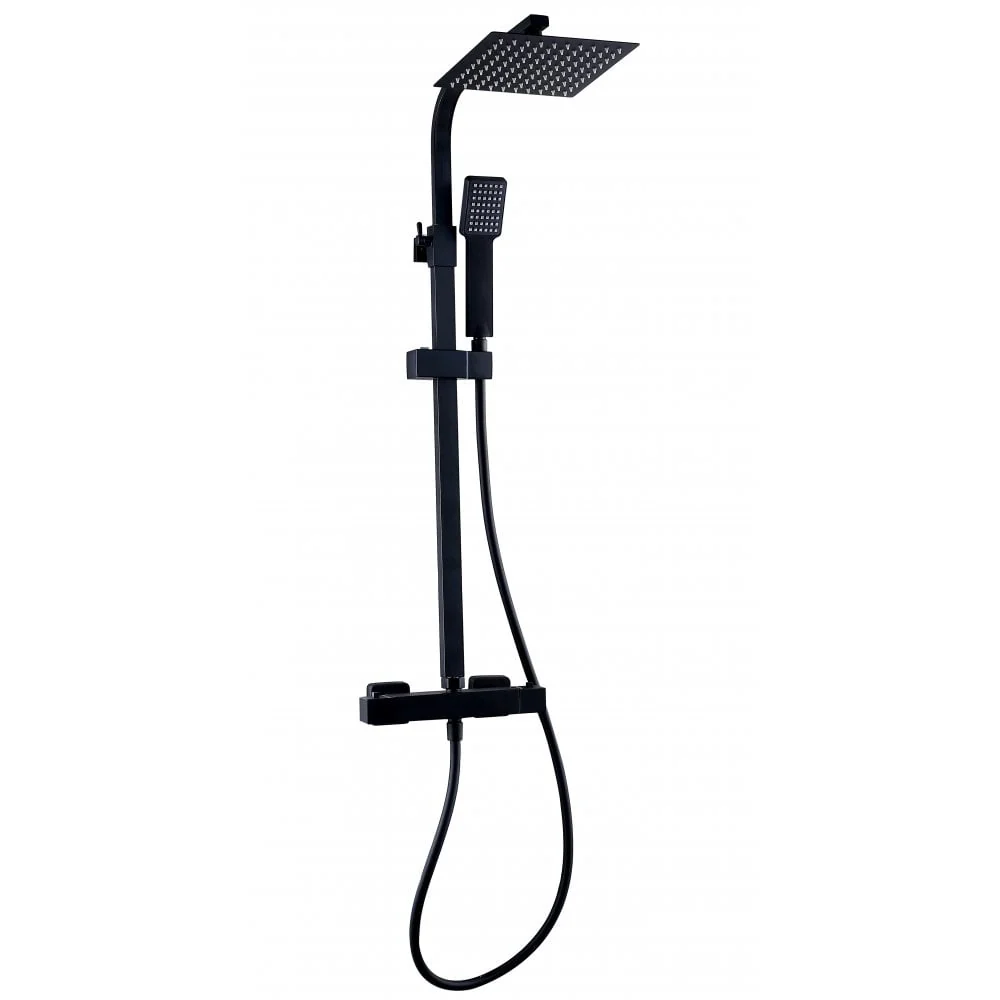

Shower

• Easy clean rubber nozzles on main shower head and handset
• Telescopic riser rail - adjustable after installation
• Adjustable handset holder means secondary shower handset can be moved up and down to suit
• Requires 0.2 bar water pressure or more
• Black Finish
• WRAS Approved

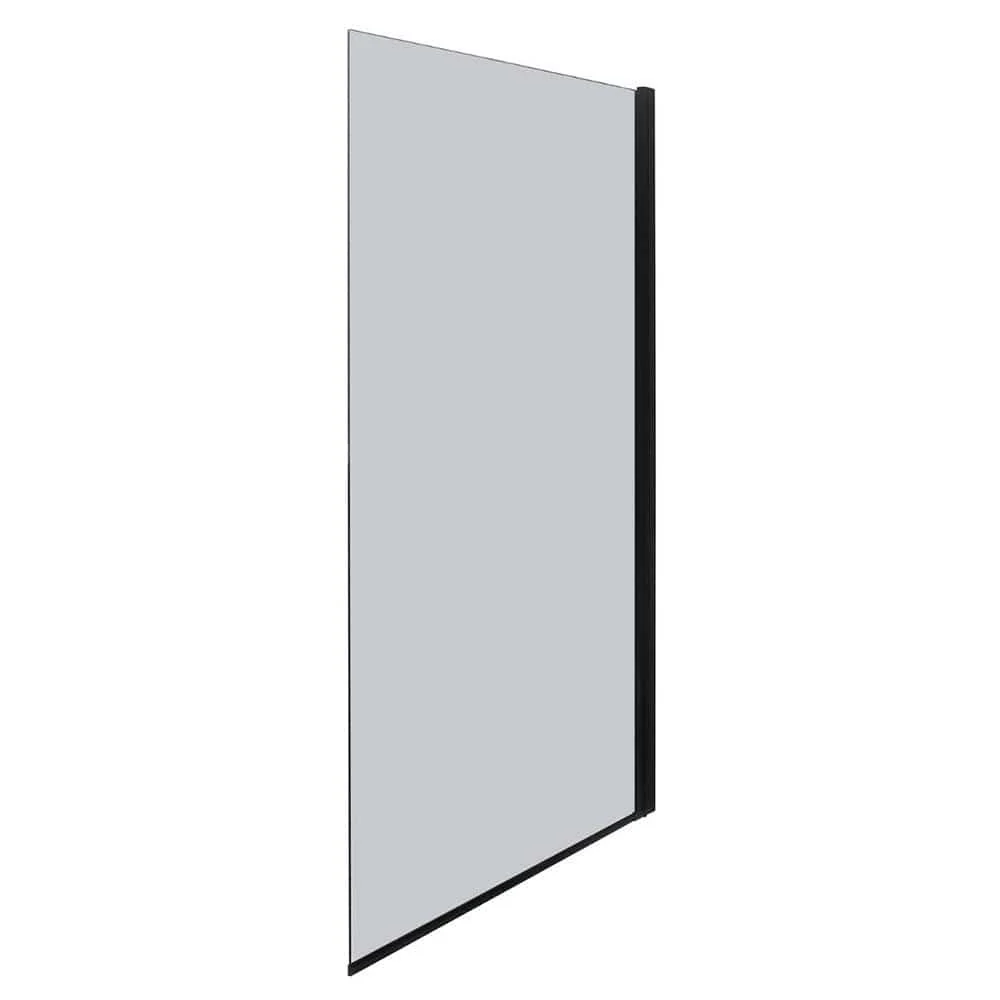

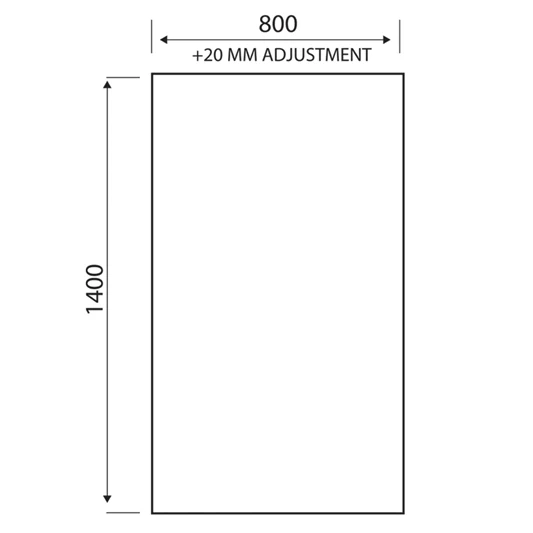

Screen

• Height : 1400mm
• Width : 800mm
• Glass Thickness : 6mm
• Bath Screen Design : Square
• Material : Toughened Glass

• Finish : Matt Black

• Style : Modern
• 20mm Adjustment for easy fitting
• Metal top and bottom hinge for a solid feel

WC Unit

• Toilet Unit : W500 x H853 x D260mm
• 18mm Carcase Unit supplied fully assembled
• Supplied undrilled so flush button can be fitted either left or right hand in the unit

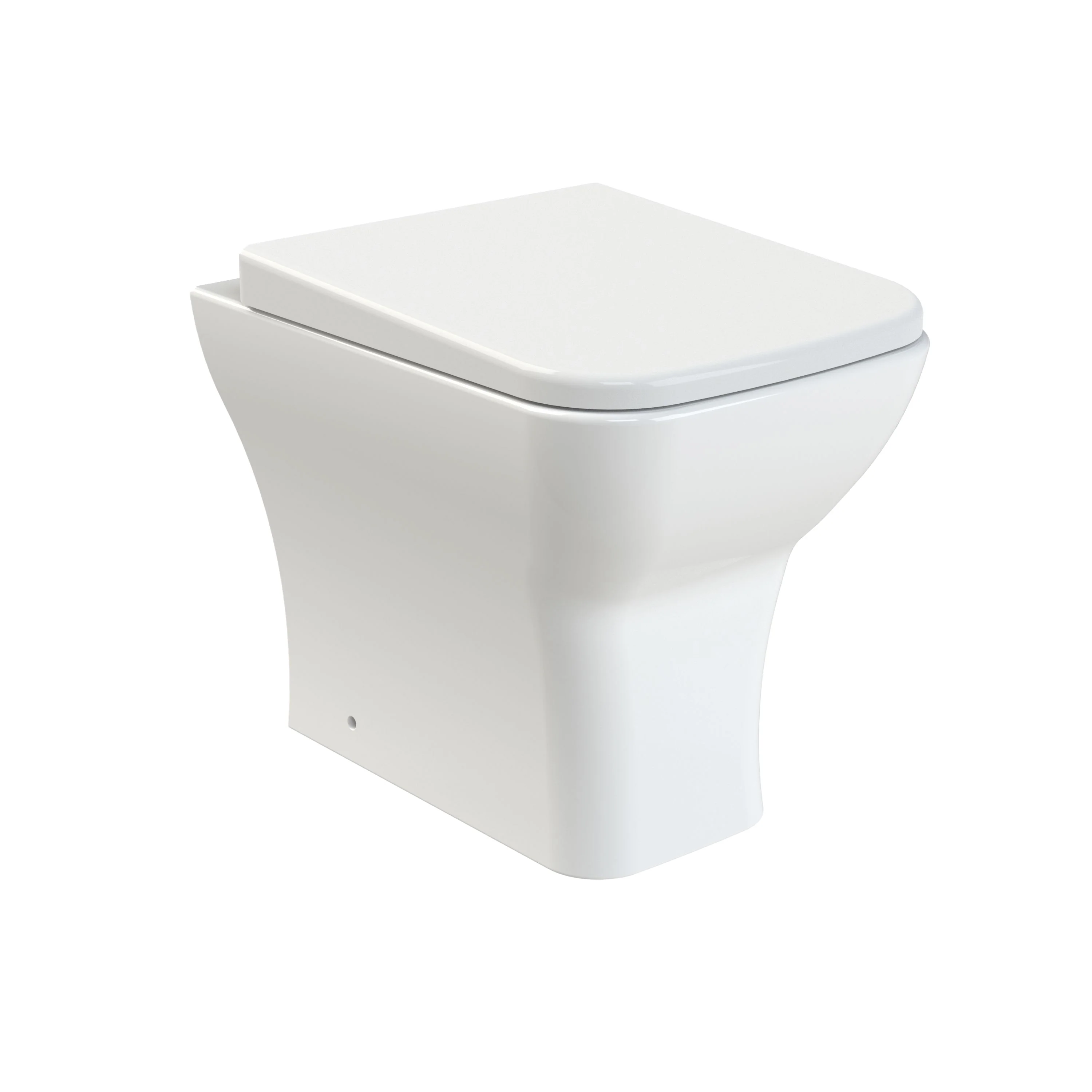

Square Pan

• Height : 410mm
• Width : 365mm
• Depth : 500mm
• Pan Trap Style: P Trap
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Includes : Pan & Soft Close Seat
• Quick release for ease of cleaning toilet seat

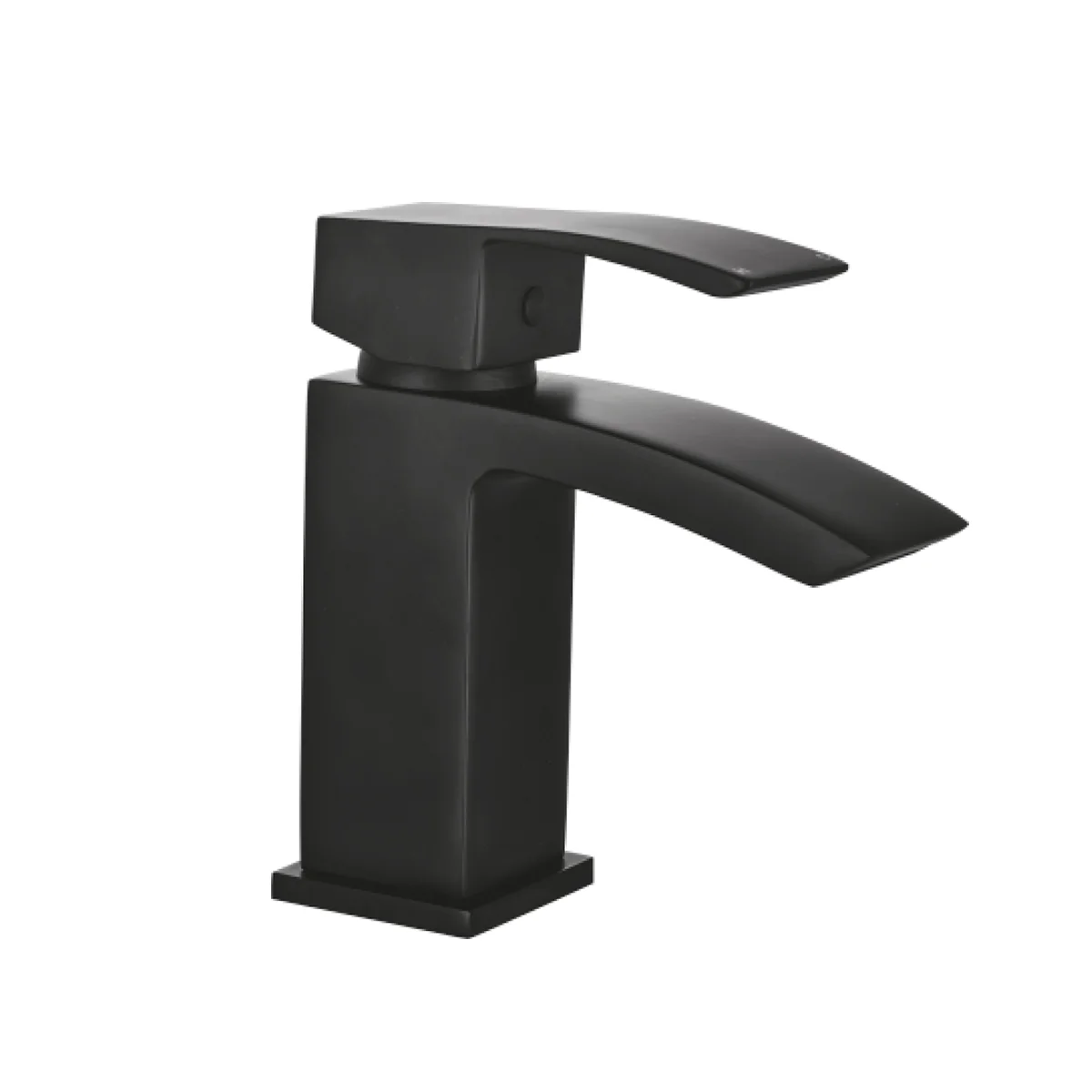

Basin Tap

• Height: 136.5mm
• Tap Spout Reach: 98mm
• Material Specification : Brass
• Finish : Black
• Operation : Single Lever
• Mounting : Deck Mounted
• Tap Hole Diameter: 35mm
• Includes Waste: Yes
• Inlet Connection: 1/2" M10
• Minimum Pressure : 0.2 Bar
• Flow Rate - 0.2 Bar 2.5 l/min
  Flow Rate - 0.5 Bar 5.6 l/min
  Flow Rate - 1.0 Bar 8.2 l/min
  Flow Rate - 2.0 Bar 11.5 l/min
  Flow Rate - 3.0 Bar 14.3 l/min

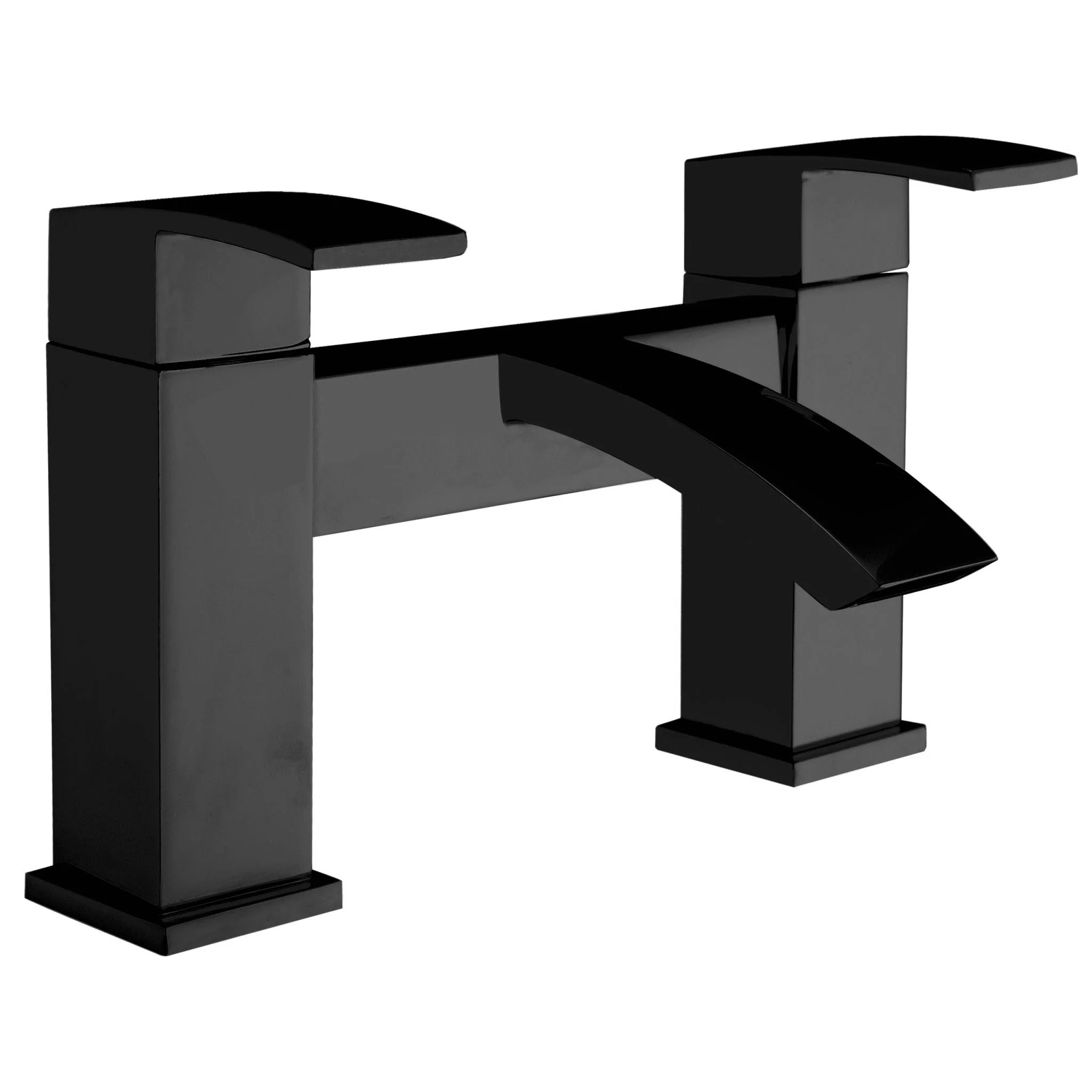

Bath Tap

• Height: 129.5mm
• Tap Spout Reach: 96.1mm
• Inlet Connection Size: 3/4 BSP
• Shape : Square
• Material Specification : Brass
• Finish : Black
• Operation : Dual Lever
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Minimum Pressure: 0.5 Bar
• Flow Rate - 0.2 Bar 15.1 l/min
  Flow Rate - 0.5 Bar 31.1 l/min
  Flow Rate - 1.0 Bar 44 l/min
  Flow Rate - 2.0 Bar 61.8 l/min
  Flow Rate - 3.0 Bar 76 l/min

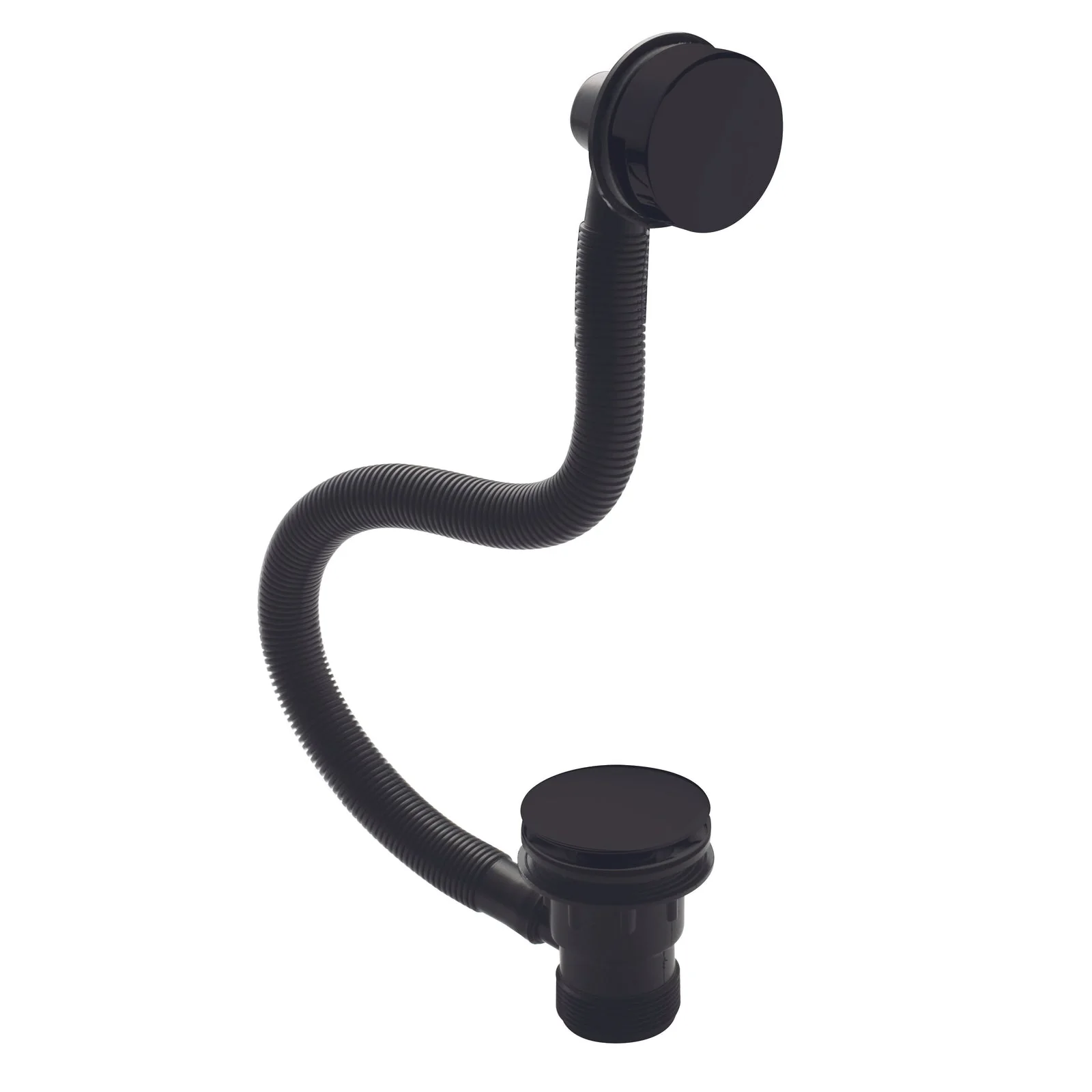

Bath Waste

• Height: 70mm
• Width: 70mm
• Depth: 100mm
• Finish: Matt Black
• Manufactured from high quality brass
• Connection Size: 1 1/2"
• Waste Shape: Round
• Waste Pipe Length: 50mm
• Waste Pipe Diameter: 25mm
• Overflow Projection: 19mm
