Alpha Vanity Complete Shower Bathroom Suite - 1700mm

The beautiful complete Alpha vanity shower bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Bath Screen
550mm Vanity Unit with Basin
Close-coupled toilet and seat

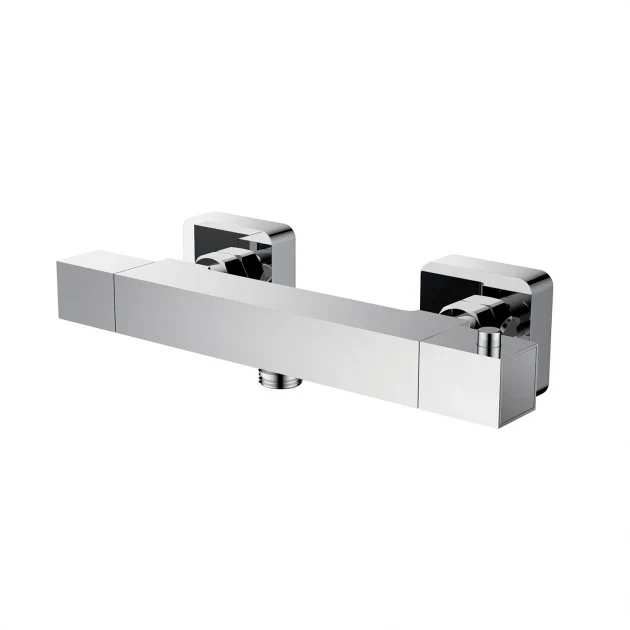

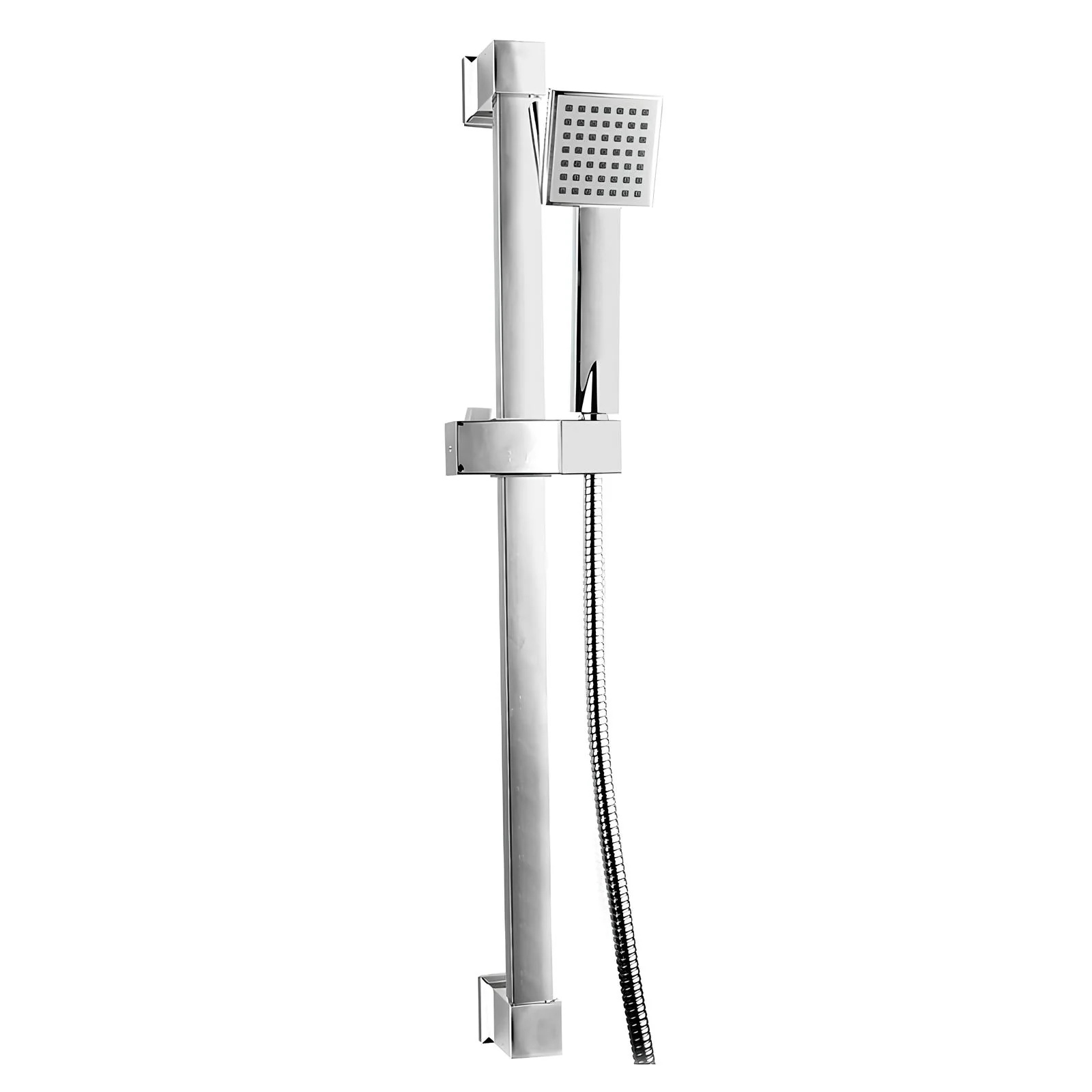

Shower
Basin mono mixer and waste
Bath Taps
Bath waste plug and chain

Technical Specification

Bath

• Length : 1700mm
• Width : 700mm
• Height : 355mm
• Bath Internal Length : 1082mm
• Bath Internal Width : 384mm
• Outlet Connection Size : 52mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 147 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White

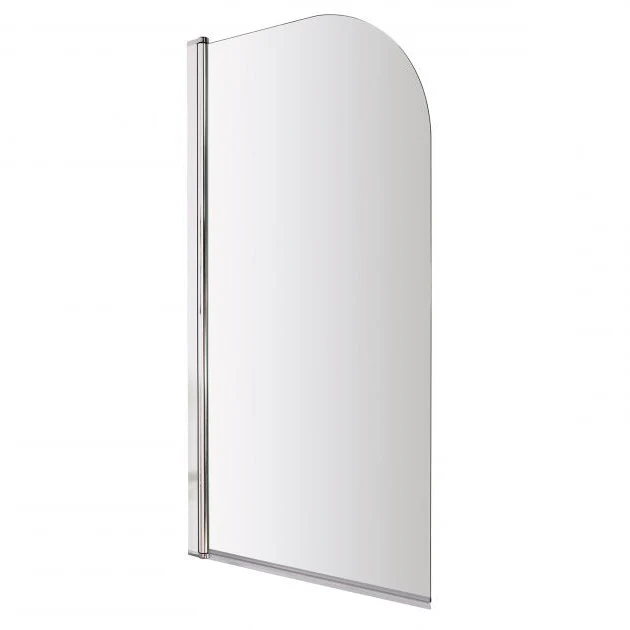

Bath Screen

• Height : 1435mm
• Width : 790mm
• Projection : 38mm
• Glass Thickness : 6mm
• Bath Screen Design : Sail
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

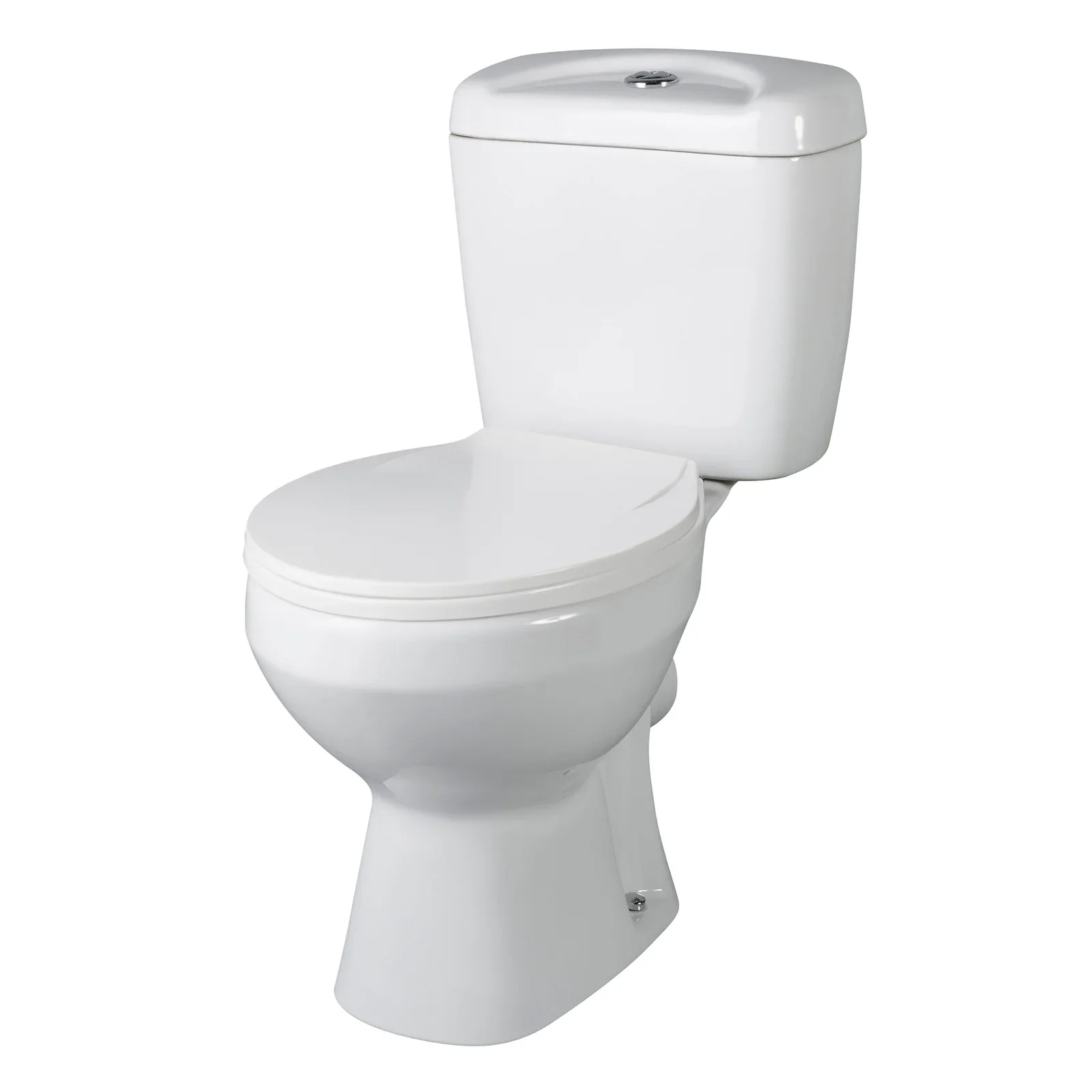

Toilet

• Toilet Total Height : 748mm
• Toilet Width : 382mm
• Space Saver Toilet Projection : 635mm
• Toilet Pan Height : 380mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 26.33kg
• Includes : Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

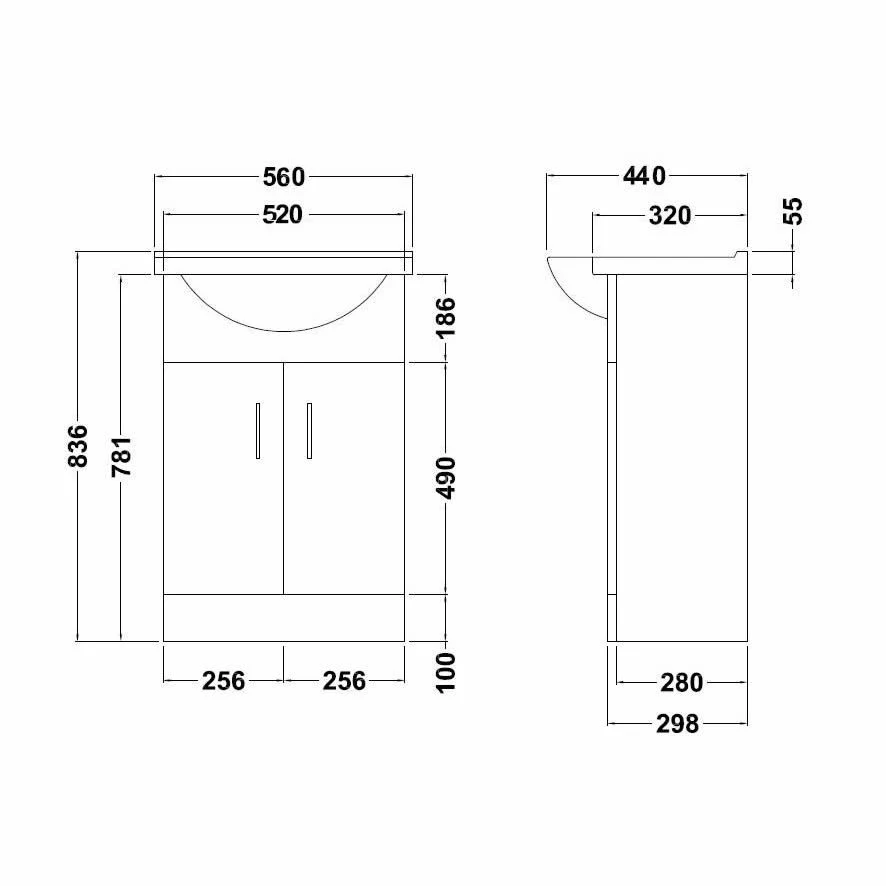

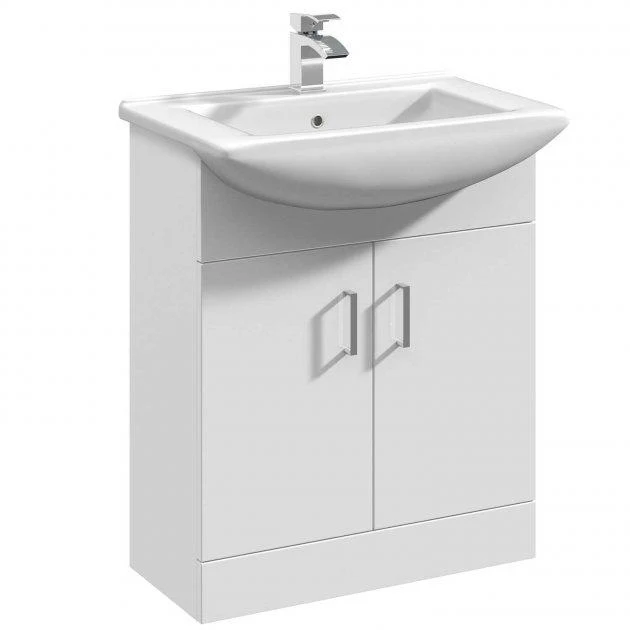

Vanity Unit

• Height (Unit & Basin): 850mm
• Width (Unit & Basin): 550mm
• Depth (Unit & Basin): 440mm
• 2-Door Design
• MDF Unit Construction
• Soft-Close Hinges
• Central Internal Shelf
• Chrome Door Handle
• Includes : Single Tap-Hole Vitreous China Basin

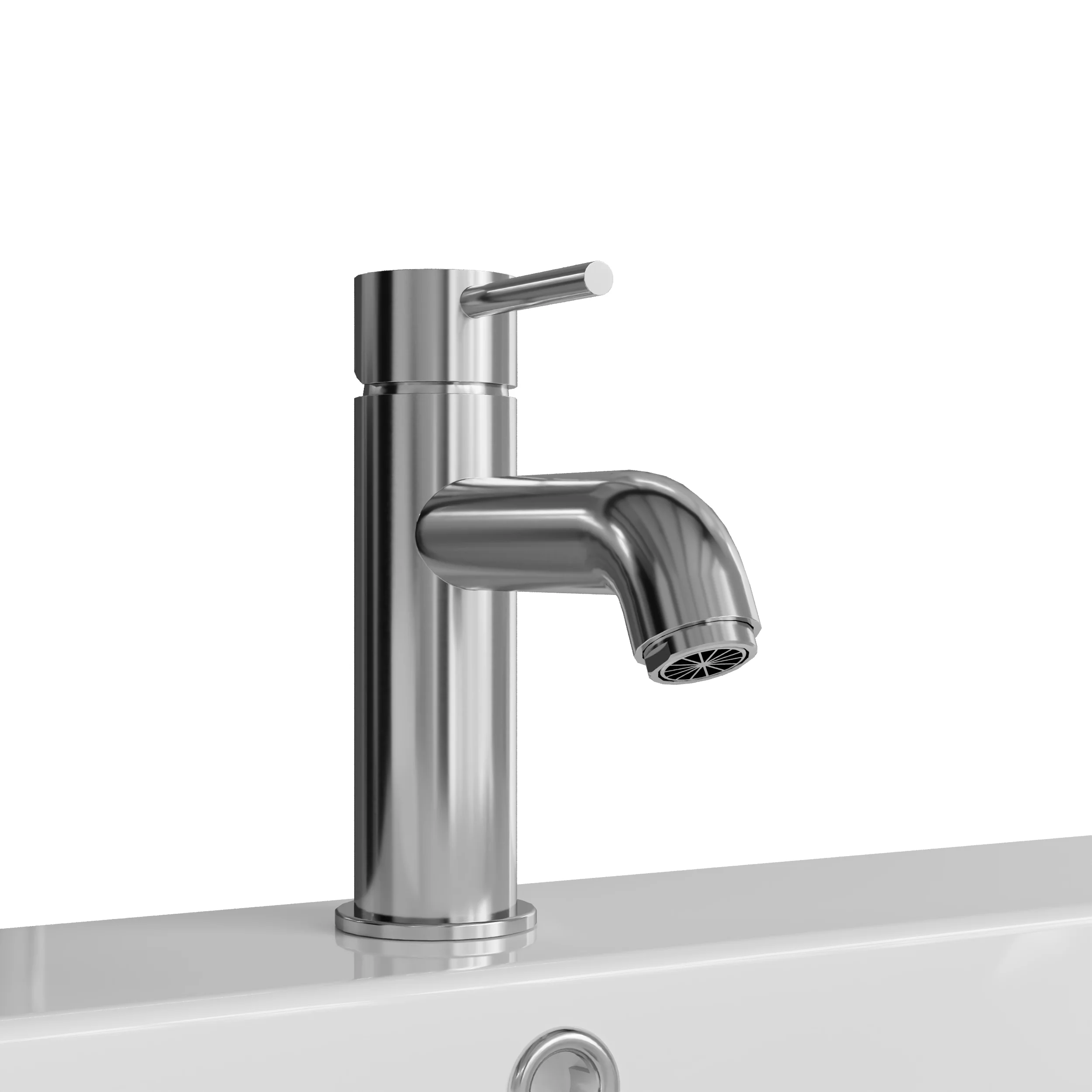

Basin Mono Tap

• Height : 117mm
• Tap Spout Reach : 100mm
• Base to Spout : 51mm
• 35mm cartridge
• Inlet Connection Size : 1/2 BSP
• Material Specification : Brass
• Finish : Chrome
• Shape : Round
• Flow Rate 0.5 Bar : 5.0 Litres per Min
• Flow Rate 1 Bar : 7.0 Litres per Min
• Flow Rate 2 Bar : 10 Litres per Min
• Flow Rate 3 Bar : 12 Litres per Min
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails
• Weight : 0.64kg

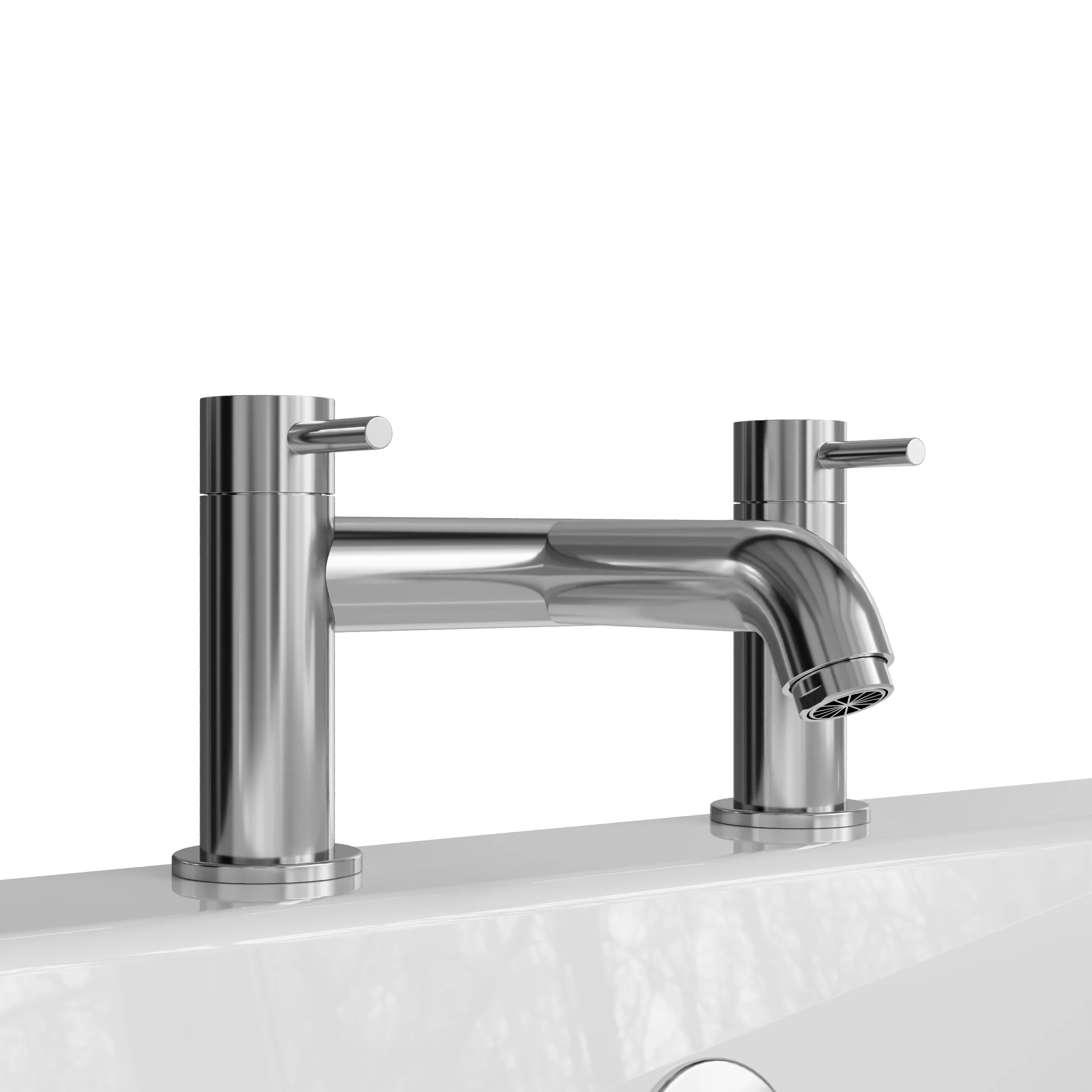

Bath Taps

• Height : 155mm
• Tap Spout Reach : 94mm
• Base to Spout : 81mm

• Inlet Connection Size : 3/4 BSP
• Shape : Round
• Material Specification : Brass
• Finish : Chrome
• Operation : Dual Lever
• Weight : 1.56kg
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Flow Rate 0.1 Bar : 8 Litres per Min
• Flow Rate 3.0 Bar : 43 Litres per Min

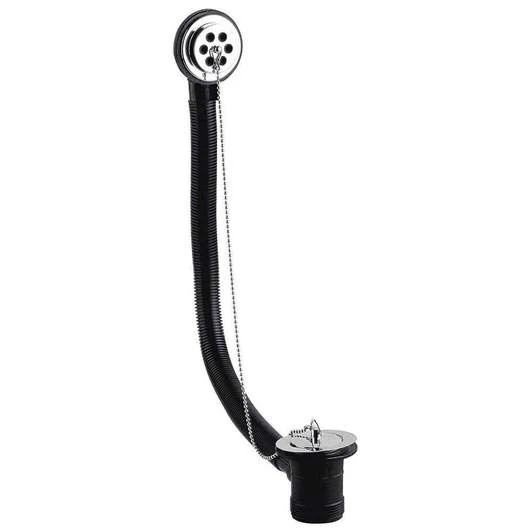

Bath Waste

• Height : 100mm
• Diameter : 65mm
• Waste Pipe Length : 515mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
• Overflow Projection : 10mm
• Material Specification : Brass
• Finish : Chrome
• Connection Size : 1 1/2"
