Mantello Matt Black Complete Vanity Bathroom Suite

The sleek complete Mantello Matt Black Vanity Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish matt black taps and bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Basin mono mixer and waste
Bath Shower mixer, hose and handset
Bath pop up waste

Technical Specification

Vanity Unit

• Height (Unit & Basin): 883mm
• Width (Unit & Basin): 500mm
• Depth (Unit & Basin): 383mm
• Basin Type : Inset
• Mounting : Floorstanding
• Unit Materials : Moisture Resistant MDF

• Basin Materials : Vitreous China
• Features : 2 Soft Close Doors
• Complete with 2 stylish black handles
• Tap Hole Location : Central
• Overflow : Included in black finish
• Includes : Single Tap-Hole Basin
• Finish: White

WC Unit

• Toilet Unit : W500 x H853 x D260mm
• 18mm Carcase Unit supplied fully assembled
• Supplied undrilled so flush button can be fitted either left or right hand in the unit

Serene back to Wall Pan

• Height : 400mm
• Width : 350mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Seat Fixing Centres : 153mm
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Weight : 28.1kg
• Includes : Top Fixing Soft Close Seat

Cistern Technical Specification

• Concealed cistern for back to wall pans and WC units
• Dual Flush with 3 or 6 Litre Option Water Saving facility

• Easy Installation and maintenance
• Adjustable flush button can be moved to be left or right hand
• Dimensions : H303 x W334 x D136mm
• WRAS approved product
• Water inlet can be left or right hand side
• Internal overflow

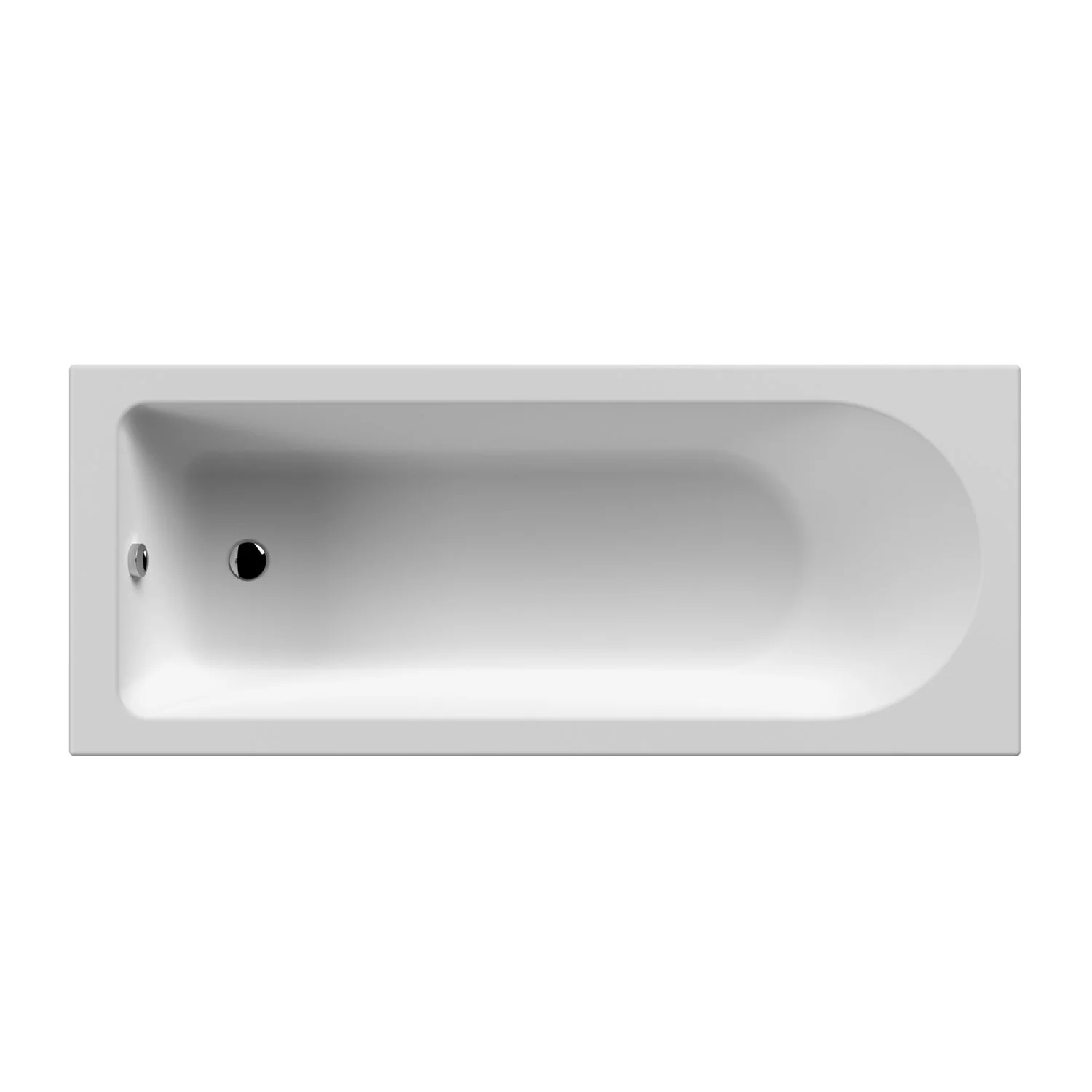

Bath

• Length : 1700mm
• Width : 750mm
• Height : 355mm
• Bath Internal Length : 1087mm
• Bath Internal Width : 391mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 158 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White
• Includes : Legset

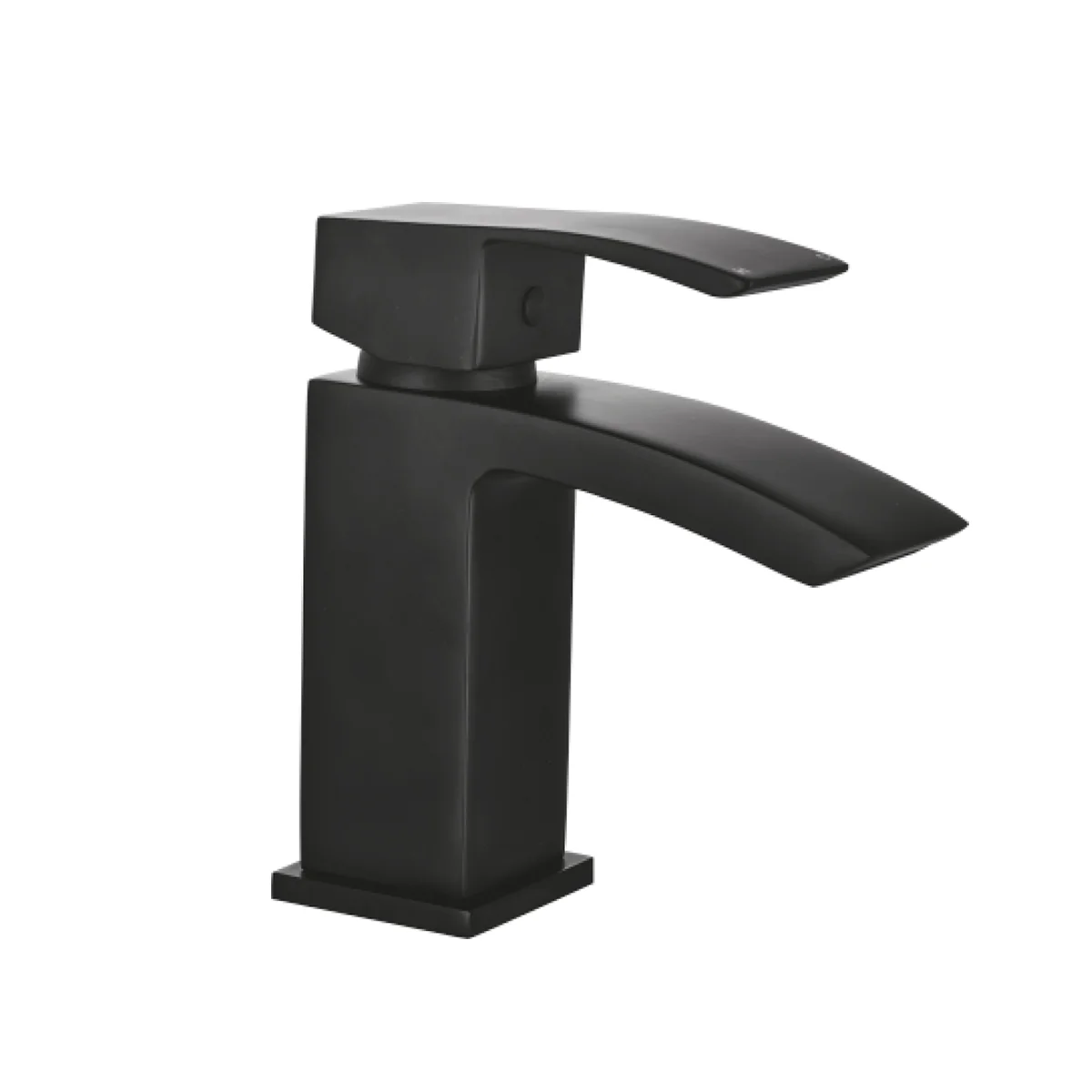

Basin Tap

• Height: 136.5mm
• Tap Spout Reach: 98mm
• Material Specification : Brass
• Finish : Black
• Operation : Single Lever
• Mounting : Deck Mounted
• Tap Hole Diameter: 35mm
• Includes Waste: Yes
• Inlet Connection: 1/2" M10
• Minimum Pressure : 0.2 Bar
• Flow Rate - 0.2 Bar 2.5 l/min
  Flow Rate - 0.5 Bar 5.6 l/min
  Flow Rate - 1.0 Bar 8.2 l/min
  Flow Rate - 2.0 Bar 11.5 l/min
  Flow Rate - 3.0 Bar 14.3 l/min

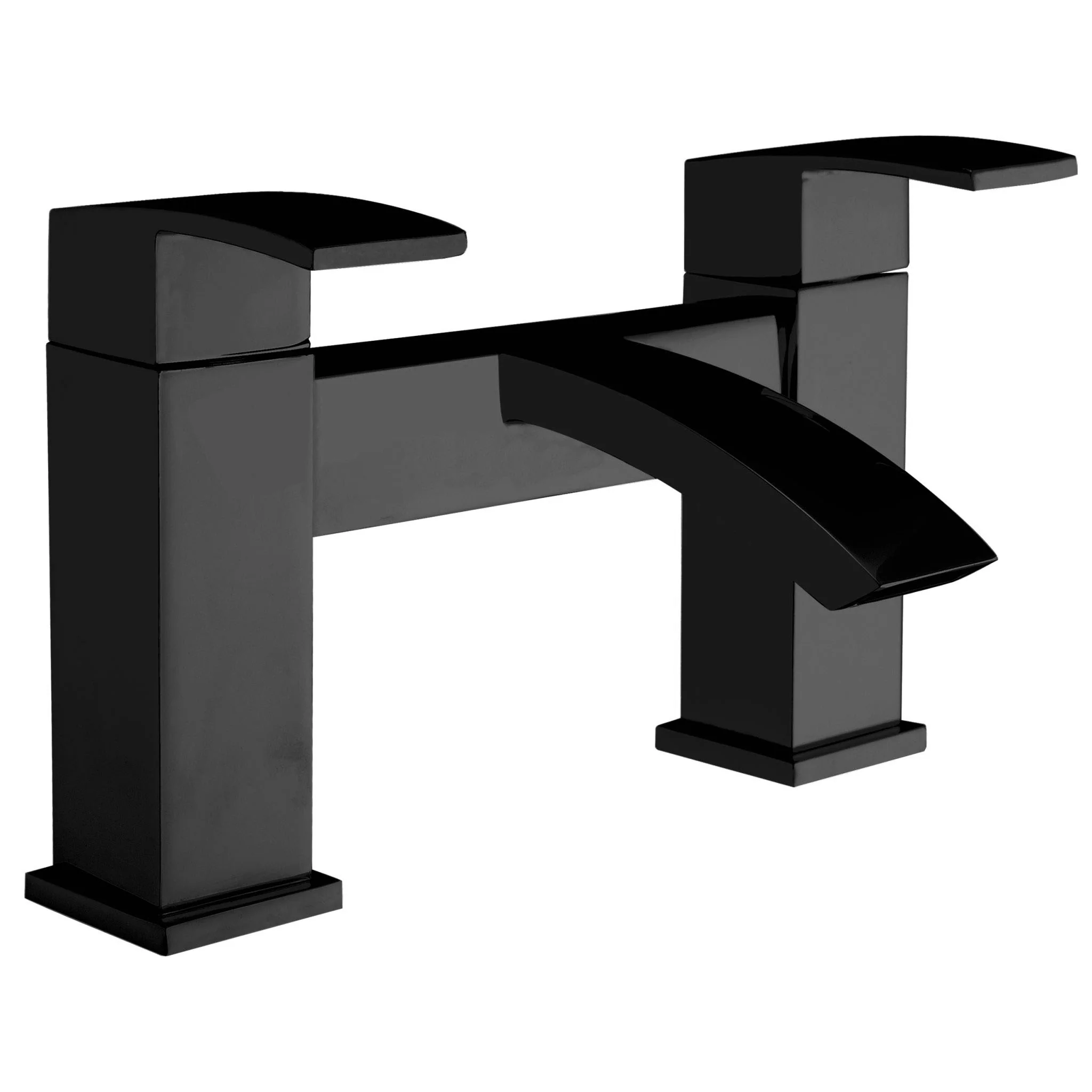

Bath Tap

• Height: 129.5mm
• Tap Spout Reach: 96.1mm
• Inlet Connection Size: 3/4 BSP
• Shape : Square
• Material Specification : Brass
• Finish : Black
• Operation : Dual Lever
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Minimum Pressure: 0.5 Bar
• Flow Rate - 0.2 Bar 15.1 l/min
  Flow Rate - 0.5 Bar 31.1 l/min
  Flow Rate - 1.0 Bar 44 l/min
  Flow Rate - 2.0 Bar 61.8 l/min
  Flow Rate - 3.0 Bar 76 l/min

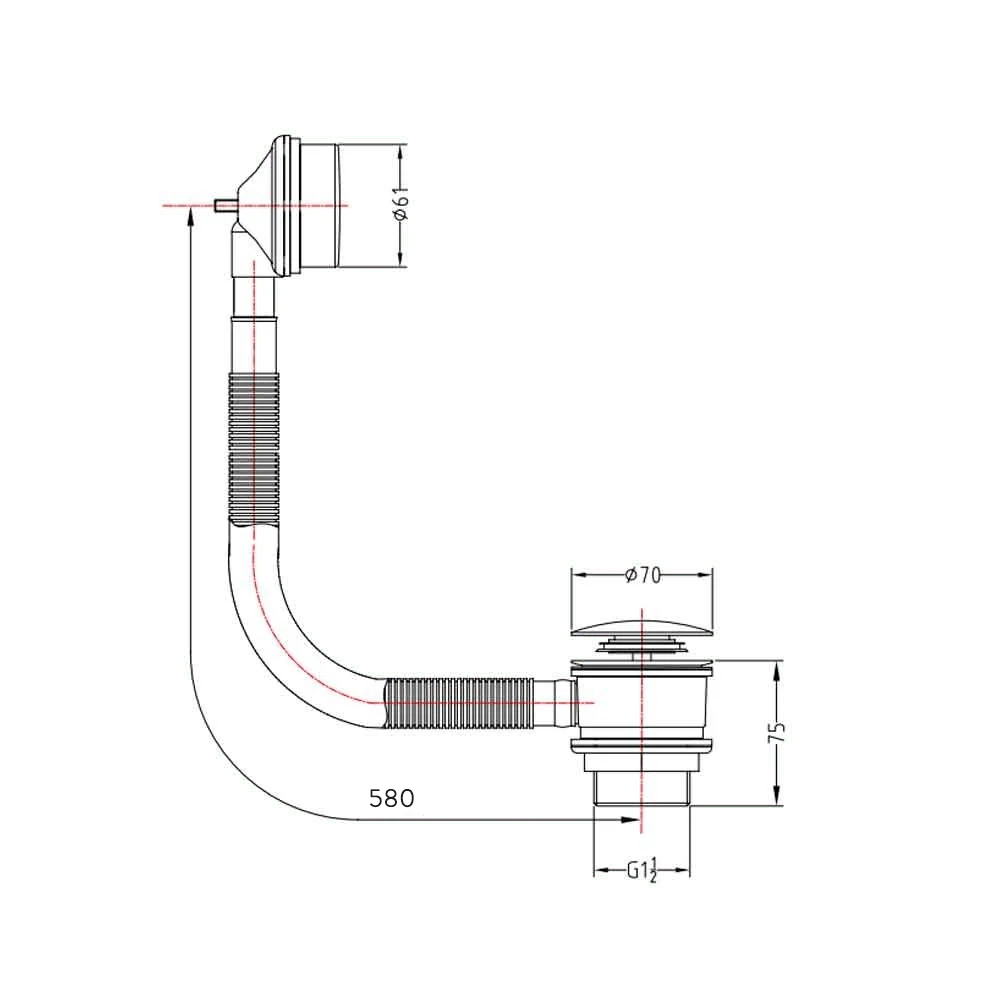

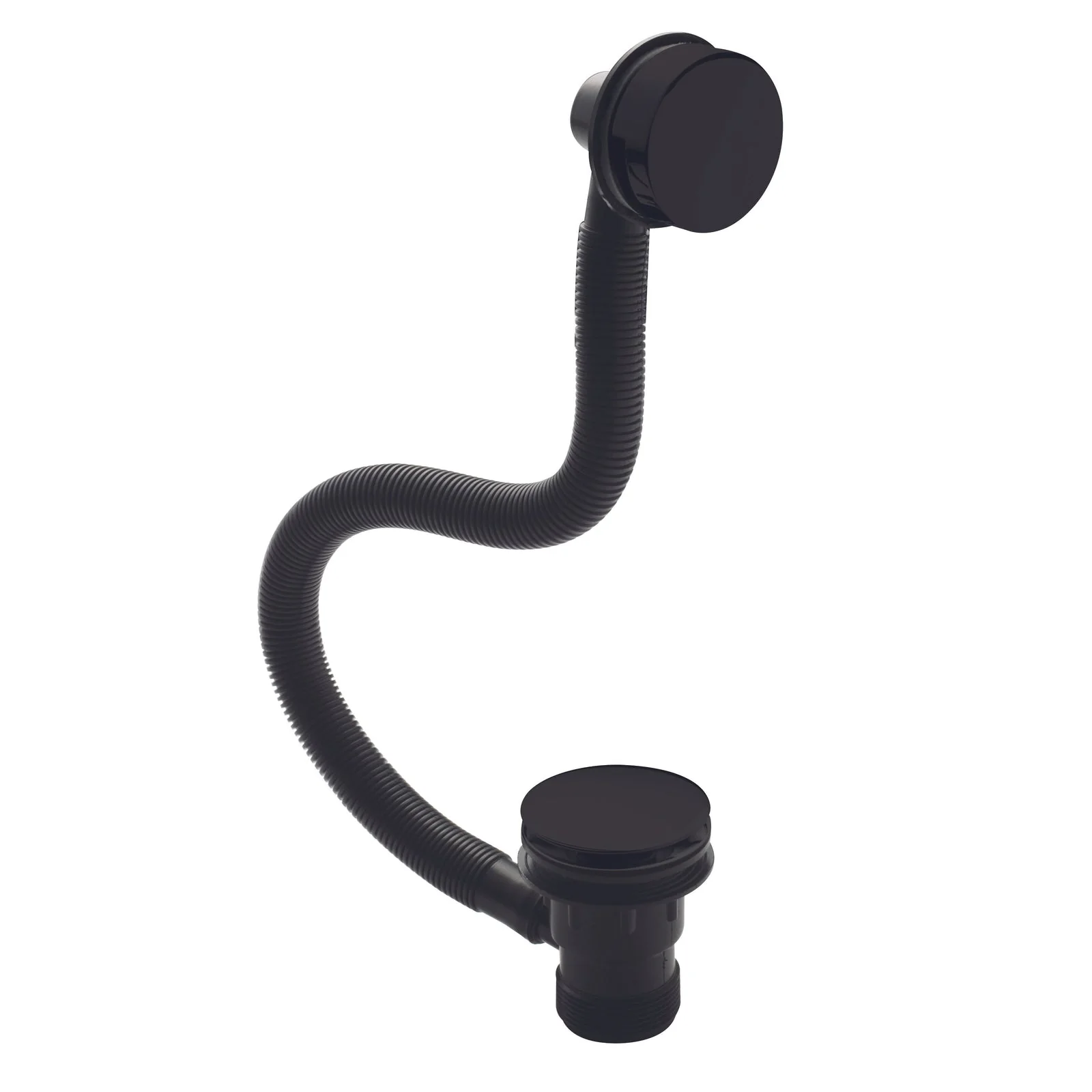

Bath Waste

• Product Diameter: 61mm
• Waste Type: Pop-Up Bath Waste
• Material Specification: Brass
• Finish: Matt Black
• Waste Pipe Diameter : 31.5mm
