Nova 1600 Complete Vanity Bathroom Suite

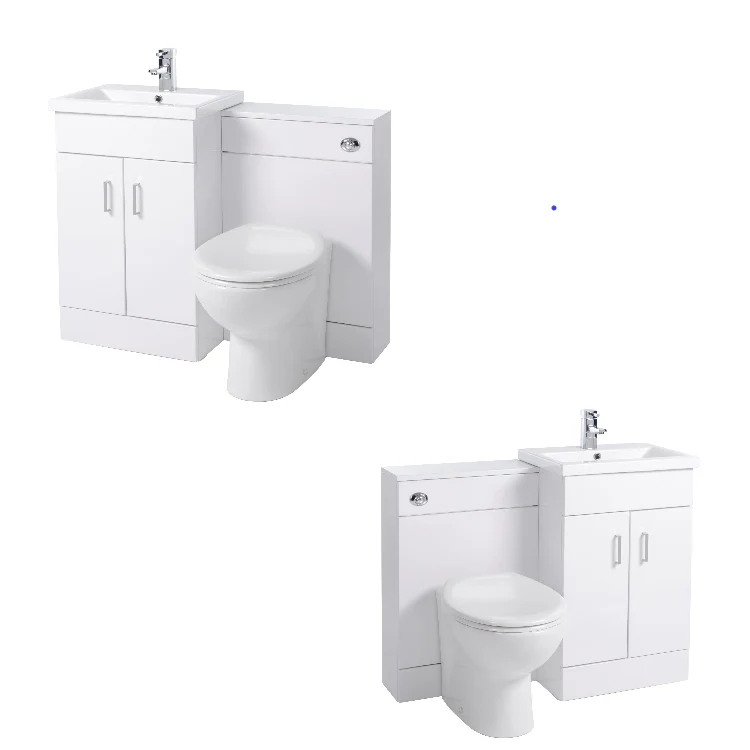

The beautiful complete Nova Vanity Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality. Can be installed with the vanity unit to the left or the right of the WC....or even stand separately.

Suite includes :-
Bath - panel not included

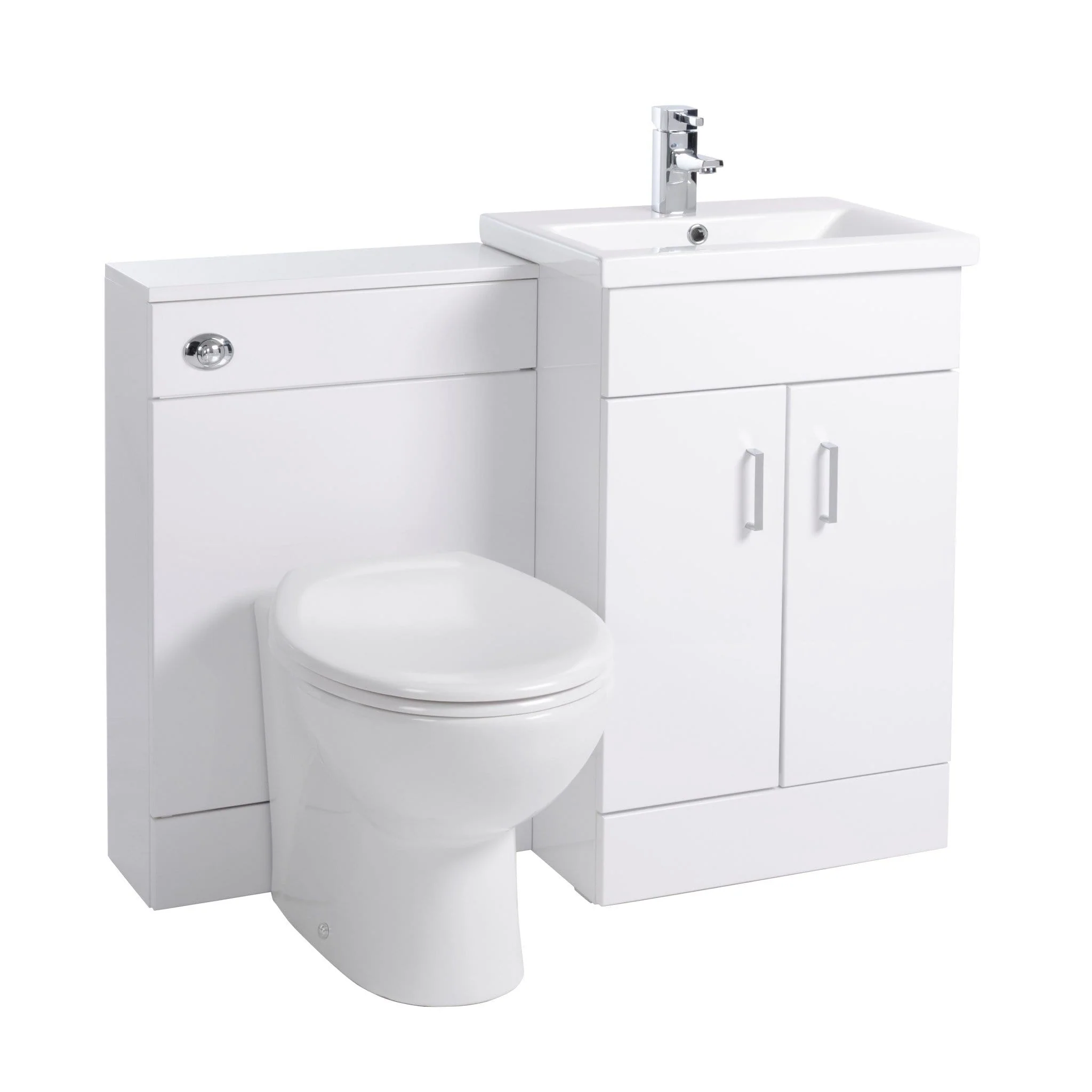

500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Basin mono mixer and waste
Bath Shower mixer, hose and handset
Bath waste plug and chain

Technical Specification

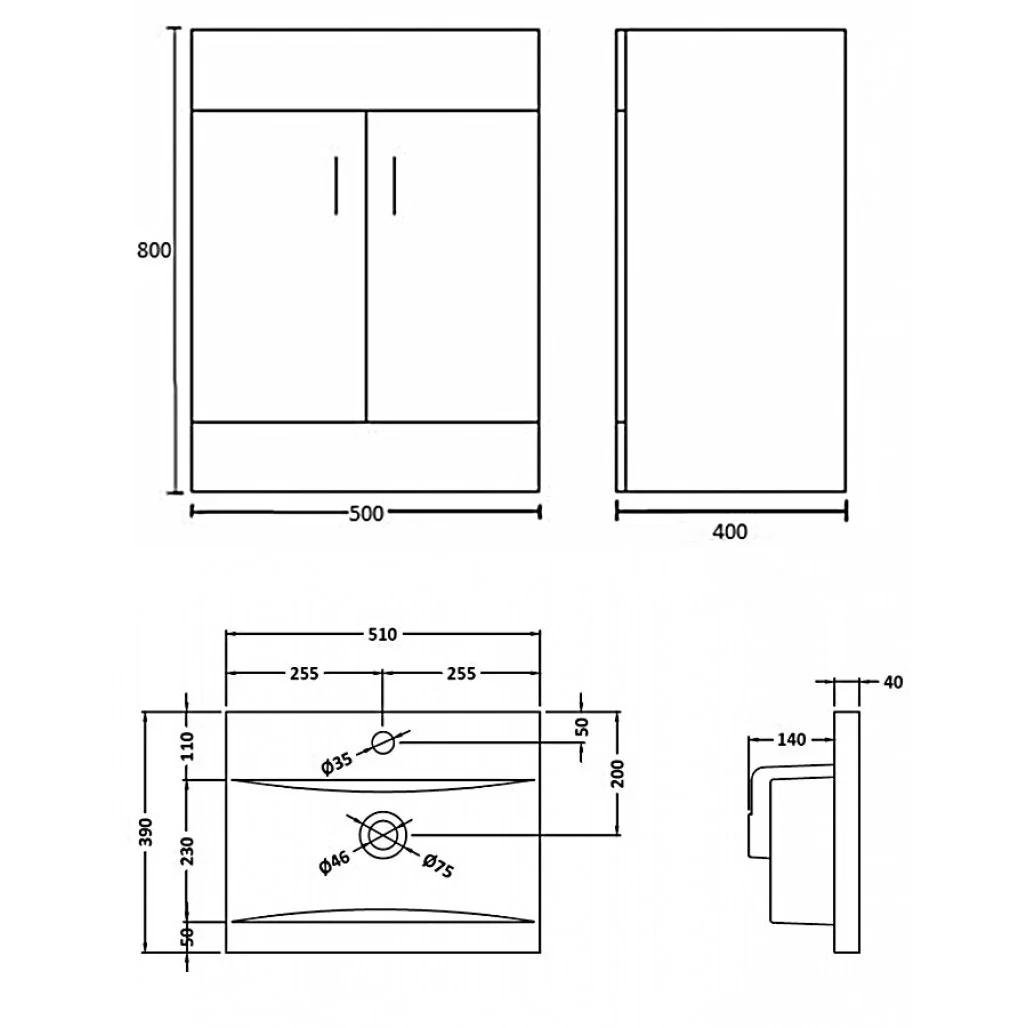

Basin Unit:

• Height: 800mm
• Width: 500mm
• Depth: 400mm
• Materials Specification: MDF Gloss White Finish
• Available Storage: 1 cupboard, double doors with shelf,
• D-Shape type handle and hinges included

Basin:

• Depth: 390mm
• Width: 510mm
• Height: 180mm
• Vitreous China 1 Tap Hole Basin

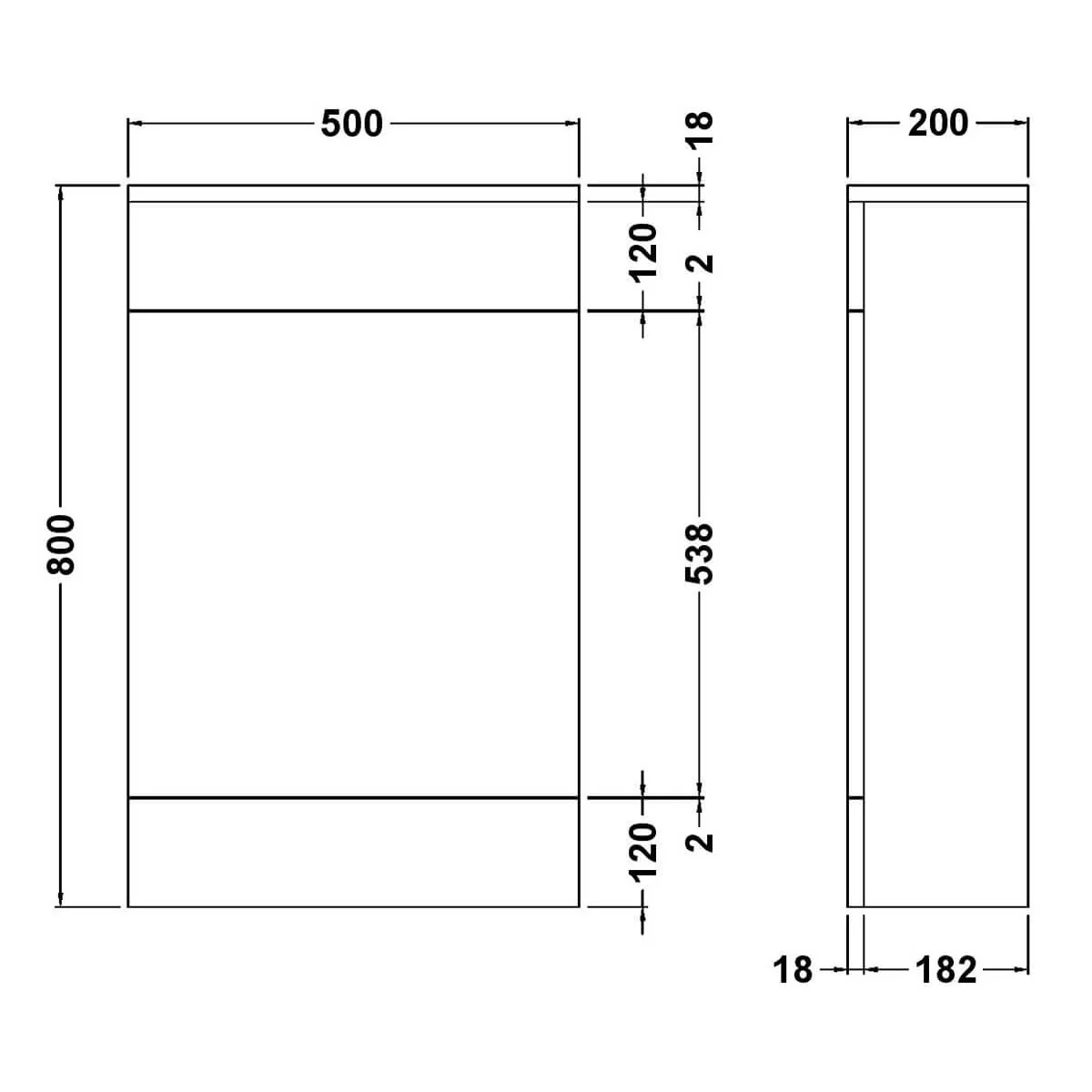

WC Unit:

• Depth: 800mm
• Width: 500mm
• Height: 200mm
• 18mm MDF Construction

• Finish: Gloss White

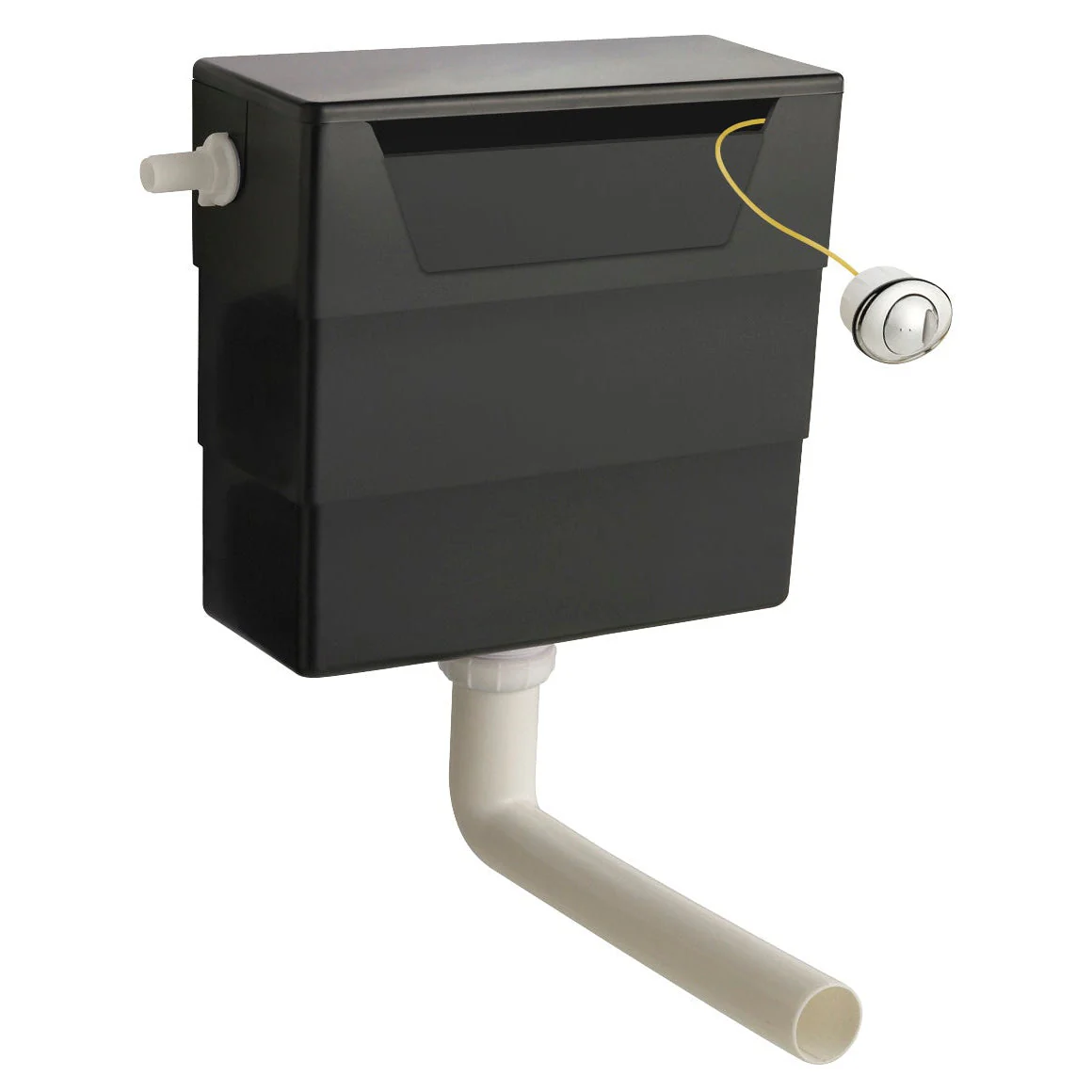

Concealed Cistern

• Flush: Chrome Finish Push Button
• Dual flush 3 or 6 Litres
• Features: Suitable for Back to Wall Toilets

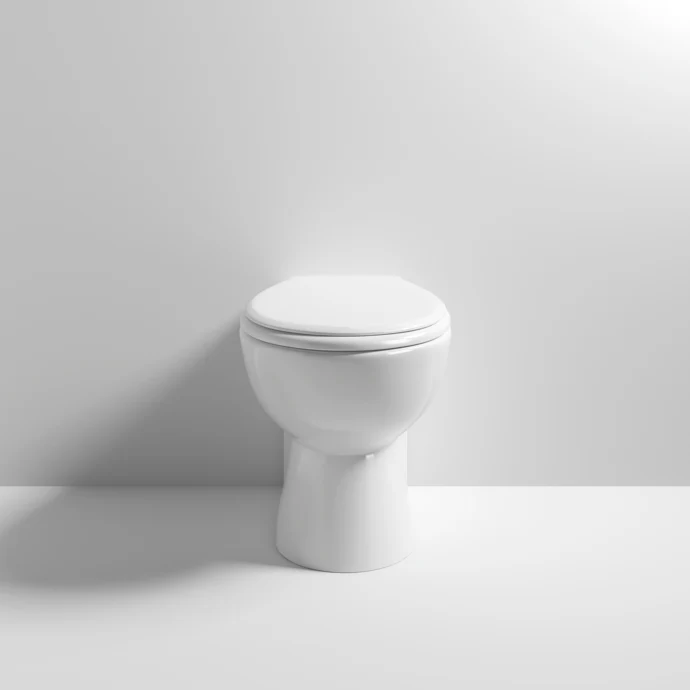

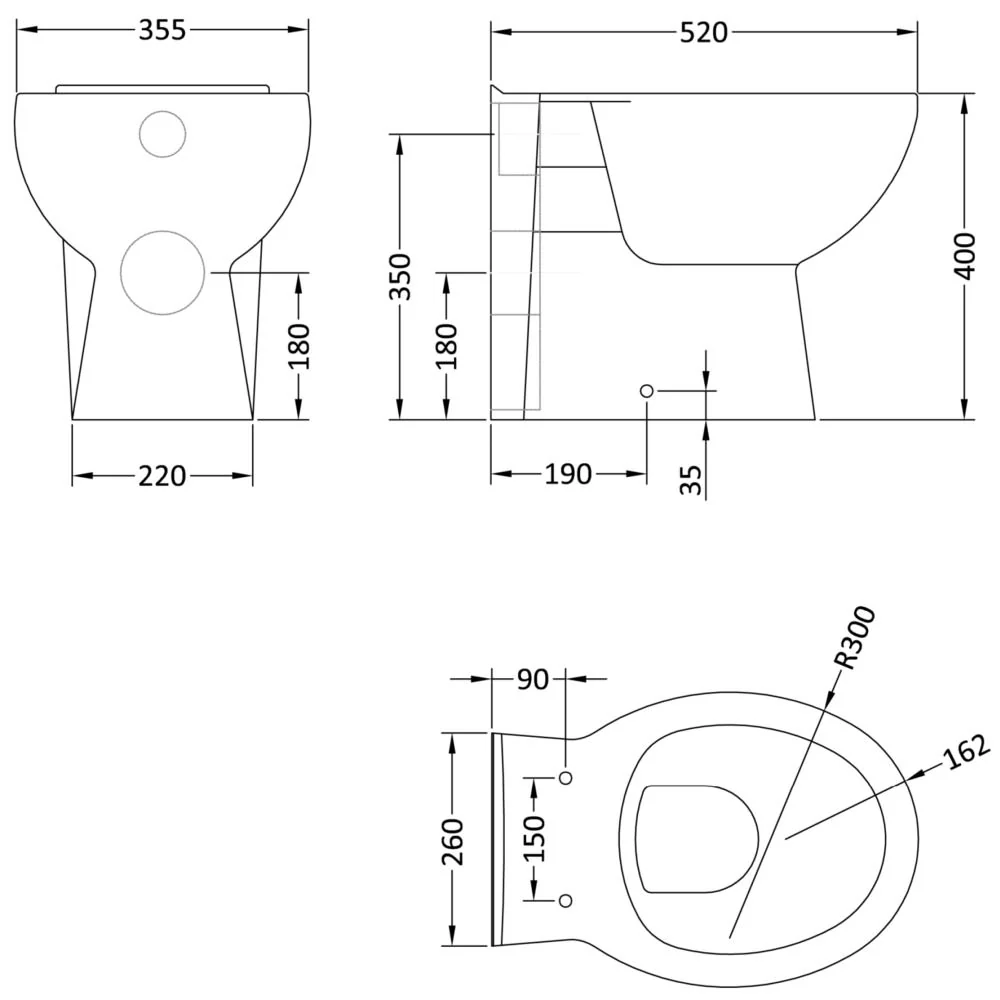

Toilet Pan

• Height : 400mm
• Width : 355mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Weight : 17kg
• Complete with Soft Close Seat

Bath

• Length : 1600mm
• Width : 700mm
• Height : 355mm
• Bath Internal Length : 982mm
• Bath Internal Width : 384mm
• Outlet Connection Size : 52mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 136 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White
• Includes : Legset

Bath Tap

• Height : 159.5mm
• Tap Spout Height : 43mm
• Projection : 186mm
• 35mm ceramic disc cartridge
• Shape : Round
• Material Specification : Brass
• Finish : Chrome
• Operation : Single Lever
• Tap Holes : 2
• Pipe Centres : 180mm
• Mounting : Deck Mounted
• Style : Modern
• Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems. Gravity Fed Systems requires a pump.
• Minimum Pressure : Subject to a minimum of 0.5 Bar
• Includes : Includes Wall Bracket, Shower Hose and Handset

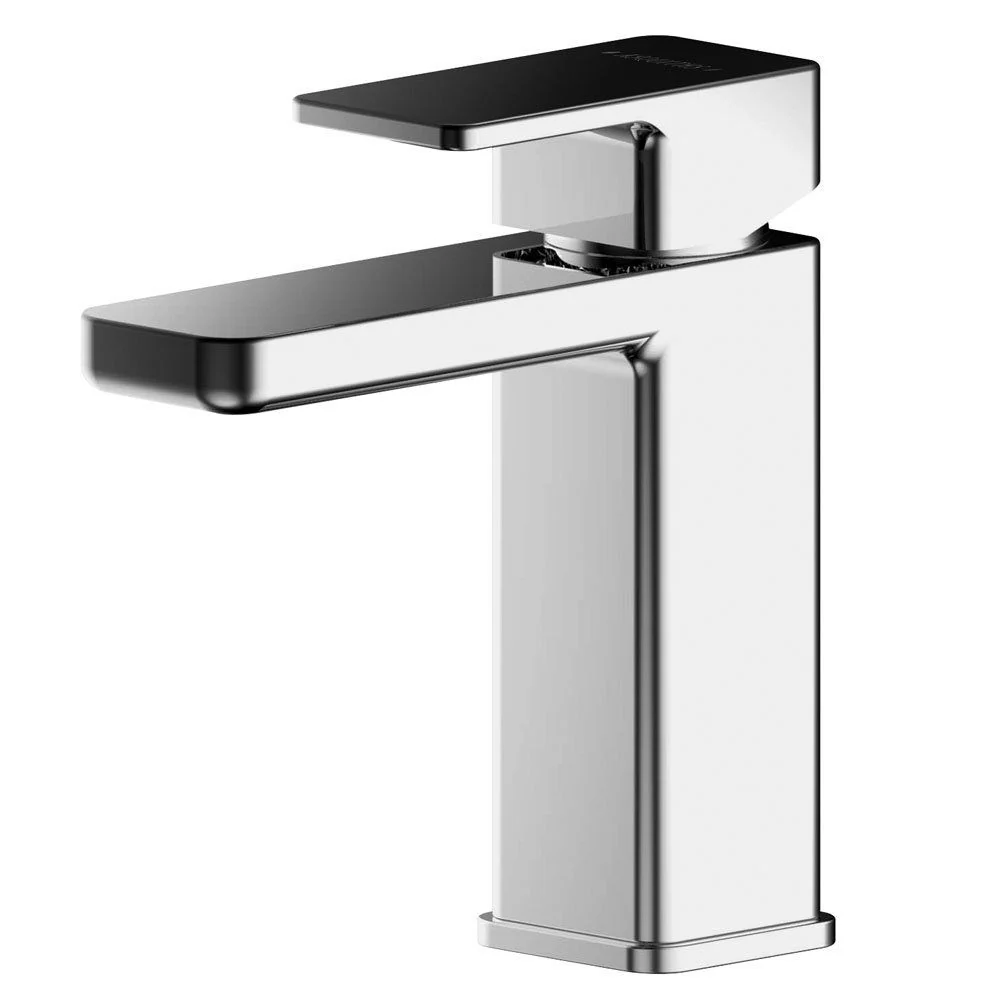

Basin Tap

• Height : 117mm
• Tap Spout Reach : 100mm
• Base to Spout : 51mm
• 35mm cartridge
• Inlet Connection Size : 1/2 BSP
• Material Specification : Brass
• Finish : Chrome
• Shape : Round
• Flow Rate 0.5 Bar : 5.0 Litres per Min
• Flow Rate 1 Bar : 7.0 Litres per Min
• Flow Rate 2 Bar : 10 Litres per Min
• Flow Rate 3 Bar : 12 Litres per Min
• Features : Ceramic Disc Technology
• Includes : Pop-Up-Basin Waste & Flexi Tails
• Weight : 0.64kg

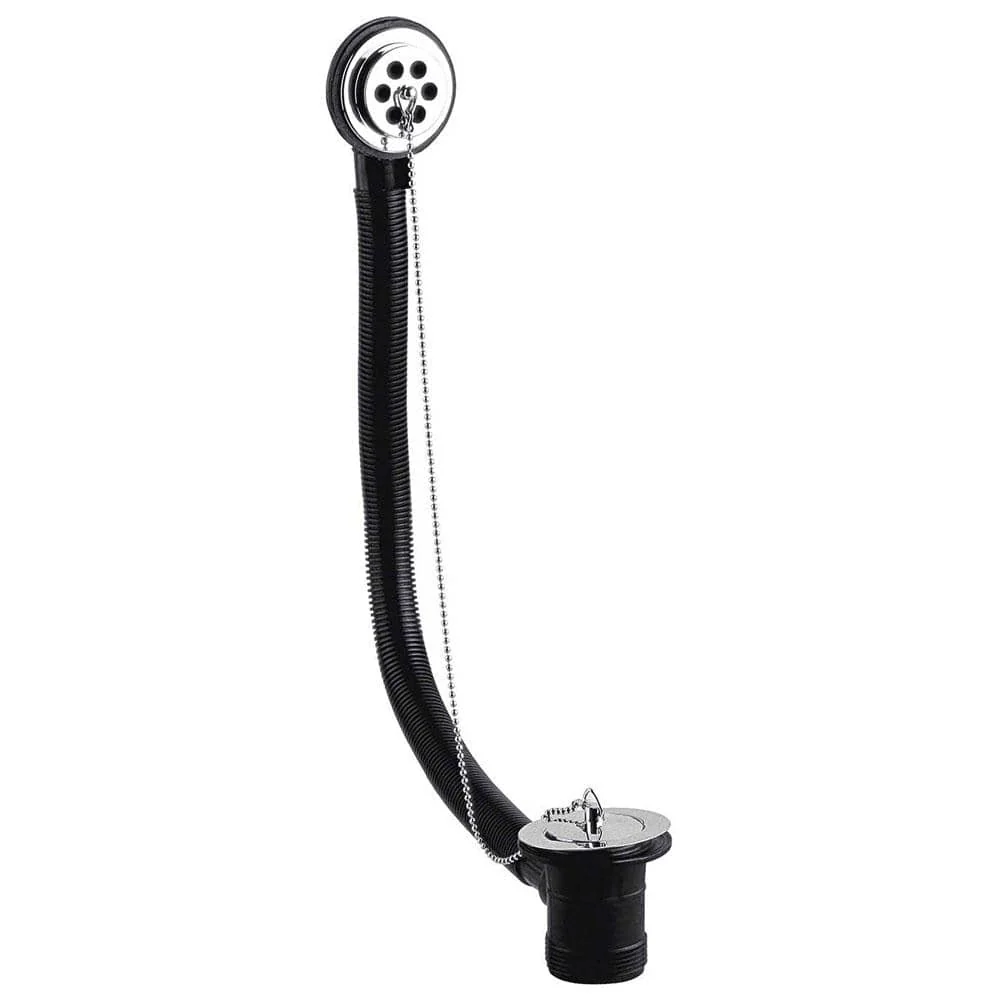

Bath Waste

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
